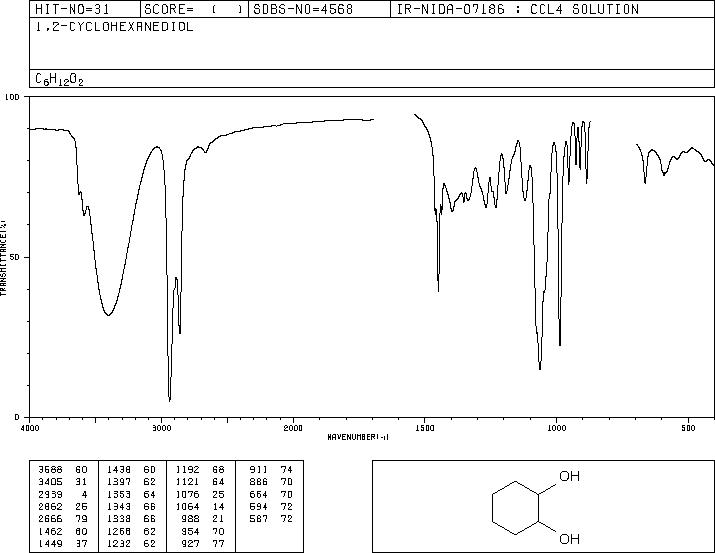

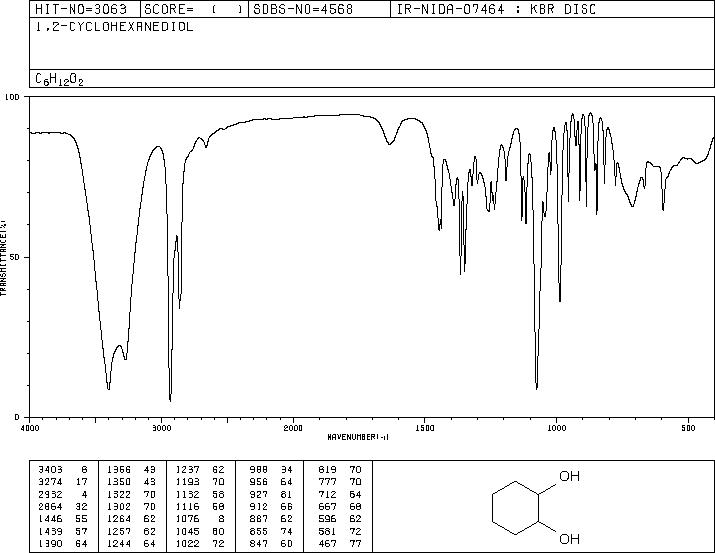

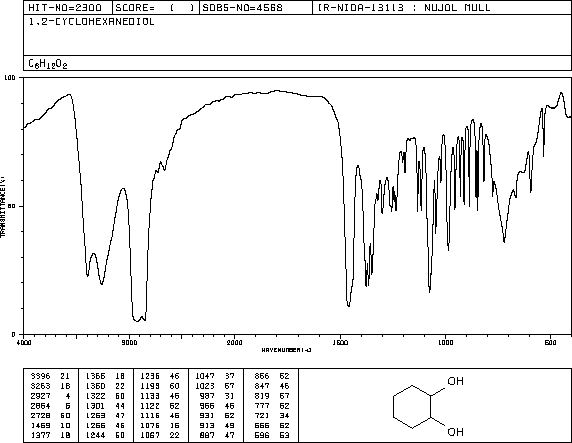

1,2-環(huán)己二醇(931-17-9)紅外圖譜(IR1)
InChI:InChI=1S/C6H12O2/c7-5-3-1-2-4-6(5)8/h5-8H,1-4H2
InChIKey: PFURGBBHAOXLIO-UHFFFAOYSA-N
Smiles:C1(O)CCCCC1O
-
Mass
MS-NW-4669
1,2-cyclohexanediol
C6H12O2 (Mass of molecular ion: 116)
Source Temperature: 260 °C
Sample Temperature: 180 °C
Reservoir, 75 eV
15.0 2.7
18.0 3.3
19.0 2.2
26.0 2.4
27.0 18.6
28.0 5.4
29.0 13.4
30.0 1.2
31.0 12.4
38.0 1.6
39.0 16.2
40.0 3.8
41.0 38.5
42.0 34.5
43.0 19.0
44.0 34.4
45.0 6.0
47.0 1.6
50.0 1.2
51.0 1.9
53.0 3.9
54.0 11.7
55.0 17.5
56.0 11.2
57.0 72.8
58.0 4.0
60.0 2.4
65.0 1.0
67.0 6.5
68.0 3.9
69.0 18.2
70.0 100.0
71.0 6.4
72.0 1.8
73.0 2.0
74.0 1.8
77.0 1.1
79.0 3.6
80.0 9.0
81.0 2.7
83.0 29.0
84.0 1.7
85.0 1.4
86.0 1.0
97.0 7.5
98.0 30.5
99.0 2.4
116.0 10.2
