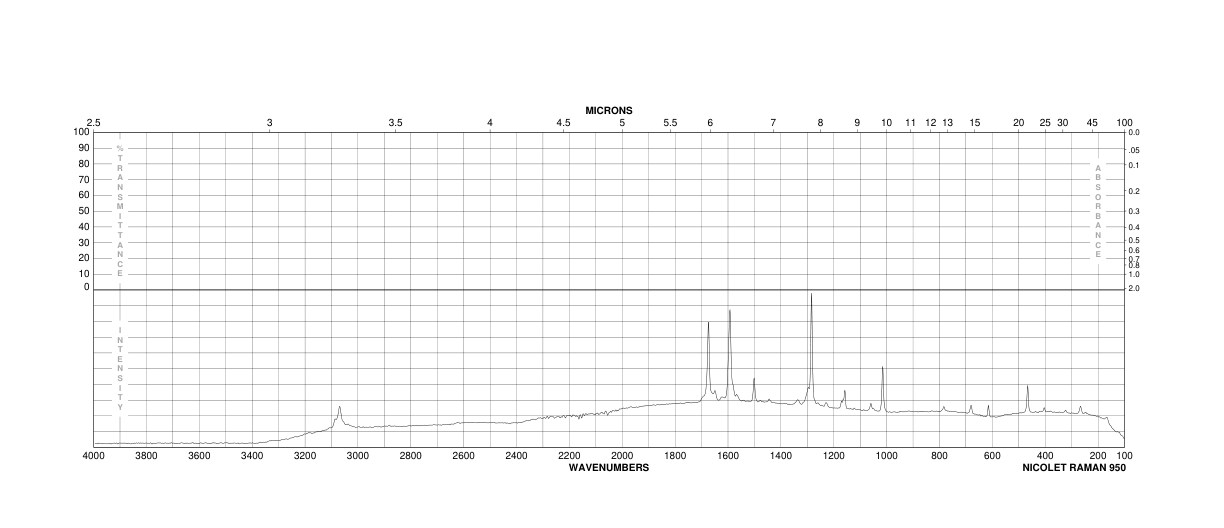

菲醌(84-11-7)Raman光譜
InChI:InChI=1S/C14H8O2/c15-13-11-7-3-1-5-9(11)10-6-2-4-8-12(10)14(13)16/h1-8H
InChIKey: YYVYAPXYZVYDHN-UHFFFAOYSA-N
Smiles:C1=C2C(C3=C(C(=O)C2=O)C=CC=C3)=CC=C1
-

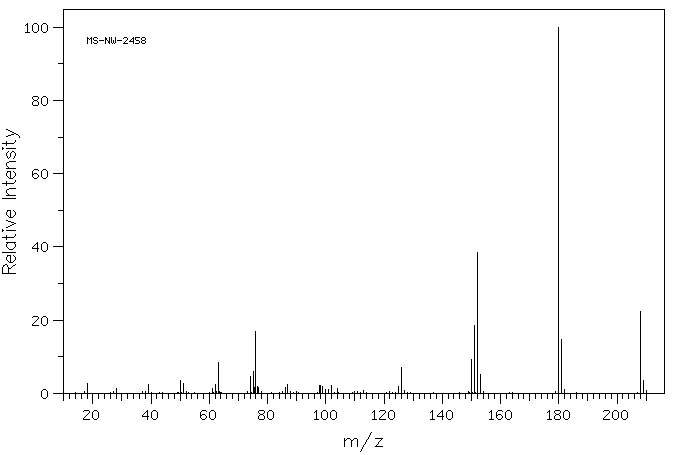

Mass
MS-NW-2458
9,10-phenanthrenequinone
C14H8O2 (Mass of molecular ion: 208)
Source Temperature: 220 °C
Sample Temperature: 140 °C
Direct, 75 eV
18.0 2.8
28.0 1.2
39.0 2.5
50.0 3.4
51.0 2.8
61.0 1.2
62.0 2.4
63.0 8.5
74.0 4.7
75.0 6.0
75.5 1.7
76.0 17.0
76.5 1.9
77.0 1.7
86.0 1.7
87.0 2.5
98.0 2.2
99.0 2.0
100.0 1.1
101.0 1.0
102.0 2.1
104.0 1.4
125.0 1.9
126.0 7.2
150.0 9.2
151.0 18.5
152.0 38.4
153.0 5.2
180.0 100.0
181.0 14.6
182.0 1.1
208.0 22.4
209.0 3.5
REDUCTION WITH ZN IN ALKALINE SOLUTION

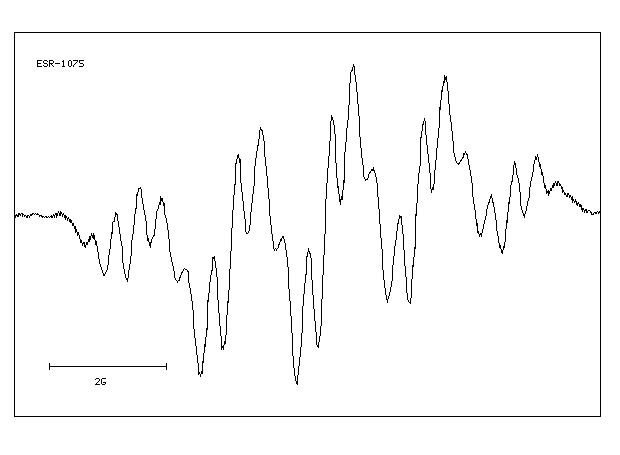

SEMIQUINONE, ELECTROLYTIC REDUCTION IN DMF
