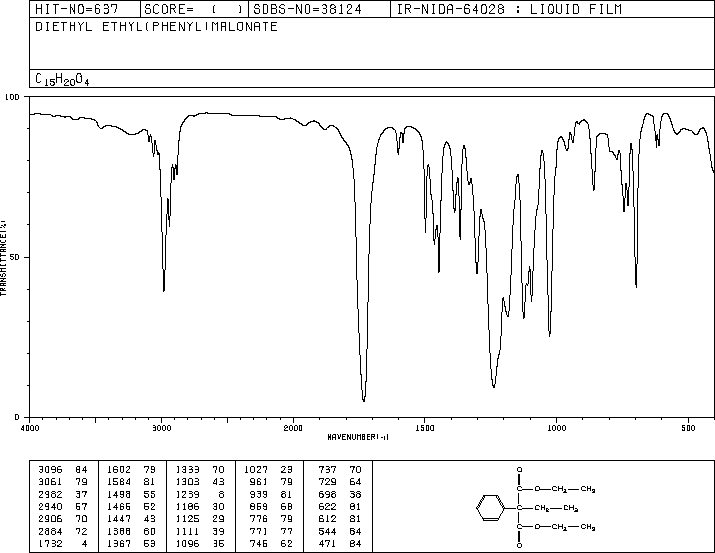

苯基乙基丙二酸二乙酯(76-67-5)紅外圖譜(IR1)
InChI:InChI=1S/C15H20O4/c1-4-15(13(16)18-5-2,14(17)19-6-3)12-10-8-7-9-11-12/h7-11H,4-6H2,1-3H3
InChIKey: PKRVDBARWFJWEB-UHFFFAOYSA-N
Smiles:C(CC)(C(=O)OCC)(C(=O)OCC)C1C=CC=CC=1
-
Mass
MS2006-02966WA
diethyl ethyl(phenyl)malonate
C15H20O4 (Mass of molecular ion: 264)
Source Temperature: 250 °C
Sample Temperature: 250 °C
Reservoir, 70 eV
26.0 1.0
27.0 7.8
28.0 1.8
29.0 47.3
30.0 1.1
31.0 1.5
39.0 3.9
41.0 6.0
43.0 3.3
44.0 4.0
45.0 7.6
50.0 1.0
51.0 4.2
52.0 1.0
57.0 8.6
63.0 3.1
65.0 3.7
73.0 43.3
74.0 2.0
76.0 1.4
77.0 12.9
78.0 4.3
79.0 6.2
89.0 5.3
90.0 2.6
91.0 79.2
92.0 6.3
93.0 1.0
102.0 3.6
103.0 19.6
104.0 2.8
105.0 14.5
106.0 1.6
107.0 21.9
108.0 1.7
115.0 23.0
116.0 8.3
117.0 64.0
118.0 17.4
119.0 53.8
120.0 5.4
127.0 1.8
131.0 7.6
132.0 1.3
133.0 1.8
135.0 100.0
136.0 10.0
144.0 3.7
145.0 8.4
146.0 37.1
147.0 12.0
148.0 1.4
149.0 5.2
159.0 1.8
161.0 3.0
162.0 3.0
163.0 7.2
164.0 7.9
174.0 5.9
175.0 1.4
177.0 7.4
190.0 7.4
191.0 59.0
192.0 62.0
193.0 7.9
205.0 1.3
218.0 1.9
219.0 1.0
220.0 6.3
221.0 1.0
236.0 2.6
264.0 10.8
265.0 1.8
