754-05-2

乙烯基三甲基硅烷(754-05-2)核磁圖(1HNMR)

產(chǎn)品名稱:乙烯基三甲基硅烷

CAS:754-05-2

分子式:C5H12Si

分子量: 100.23

  • 圖譜

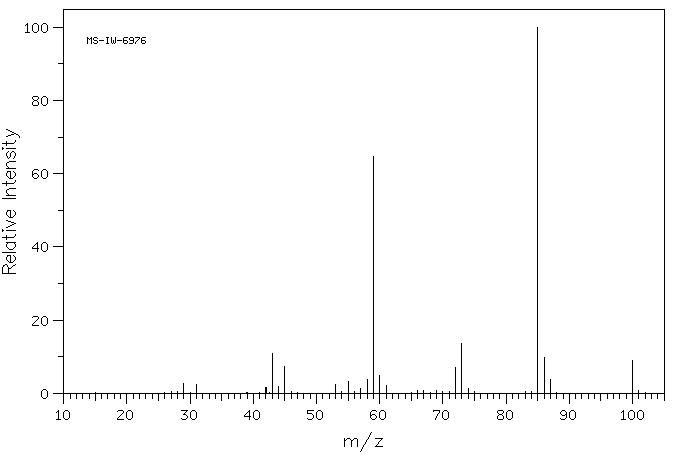

    Mass

    MS-IW-6976
trimethylvinylsilane
C5H12Si             (Mass of molecular ion:    100)


       Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          29.0       2.6
      31.0       2.5
      42.0       1.7
      43.0      10.8
      44.0       2.0
      45.0       7.4
      53.0       2.4
      55.0       3.2
      57.0       1.3
      58.0       3.7
      59.0      64.6
      60.0       4.9
      61.0       2.2
      72.0       7.0
      73.0      13.5
      74.0       1.3
      85.0     100.0
      86.0       9.7
      87.0       3.9
     100.0       8.9

400 MHz in CDCl3

  • 圖譜

    1H NMR 399.65 MHz
    C5 H12 Si 0.05 ml : 0.5 ml CDCl3
    trimethylvinylsilane
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.156
      B             5.919
      C             5.666
      D             0.071


         Hz     ppm     Int.


       2479.49   6.205     91
   2464.84   6.168    117
   2459.23   6.154    105
   2444.58   6.117    139
   2374.02   5.941    126
   2370.12   5.931    138
   2359.38   5.904    101
   2355.47   5.894    101
   2275.51   5.694    121
   2271.61   5.684    112
   2255.13   5.643    100
   2251.34   5.634     94
     38.94   0.098     21
     31.62   0.080    252
     28.56   0.072   1000
     24.90   0.063    184

in CDCl3

  • 圖譜

liquid film

  • 圖譜

  • 圖譜

×
