ChemicalBook
English   Japanese   Germany   Korea

6610-29-3

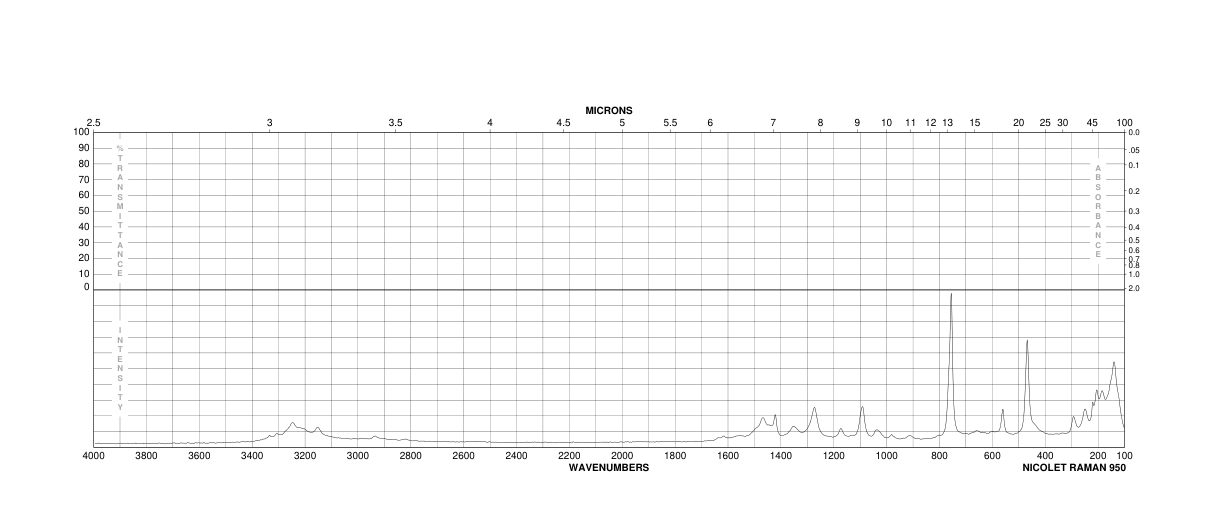

4-甲基氨基硫脲(6610-29-3)Raman光譜

產(chǎn)品名稱:4-甲基氨基硫脲

CAS:6610-29-3

分子式:C2H7N3S

分子量: 105.16

InChI:InChI=1S/C2H7N3S/c1-4-2(6)5-3/h3H2,1H3,(H2,4,5,6)

InChIKey: PTVZQOAHCSKAAS-UHFFFAOYSA-N

Smiles:N(C(NC)=S)N

  • 圖譜
    Mass

    MS-NW-4968
4-methyl(thiosemicarbazide)
C2H7N3S             (Mass of molecular ion:    105)


       Source Temperature: 140 °C
   Sample Temperature: 100 °C
   Direct, 75 eV


          15.0      10.2
      16.0       1.1
      17.0       3.5
      18.0       3.7
      27.0       1.2
      28.0      12.0
      29.0       3.3
      30.0      14.1
      31.0       7.7
      32.0     100.0
      33.0       1.0
      42.0       9.8
      43.0       3.1
      45.0       3.9
      46.0       1.2
      47.0       7.2
      48.0       1.0
      55.0       4.2
      56.0       1.3
      57.0       6.2
      59.0       4.9
      60.0       6.4
      62.0       1.9
      72.0       1.5
      73.0       1.8
      74.0      38.9
      75.0       3.8
      76.0       2.1
     105.0      64.3
     106.0       3.1
     107.0       3.2

400 MHz in DMSO-d6

  • 圖譜

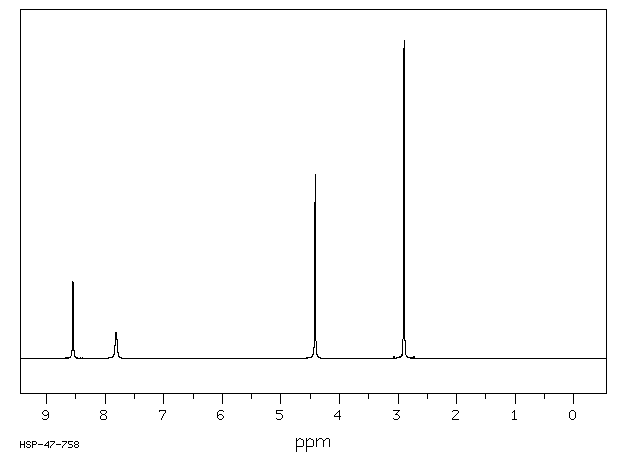

    1H NMR 399.65 MHz
    C2 H7 N3 S 0.041 g : 0.5 ml DMSO-d6
    4-methyl(thiosemicarbazide)
    ChemicalStructure
        Assign.     Shift(ppm)

      A     *1      8.55
      B     *1      7.81
      C             4.42
      D             2.898


         Hz     ppm     Int.


       3416.87   8.550    243
   3121.46   7.811     82
   1764.53   4.416    580
   1160.89   2.905    977
   1156.25   2.894   1000
   1149.90   2.878     52

in DMSO-d6

  • 圖譜

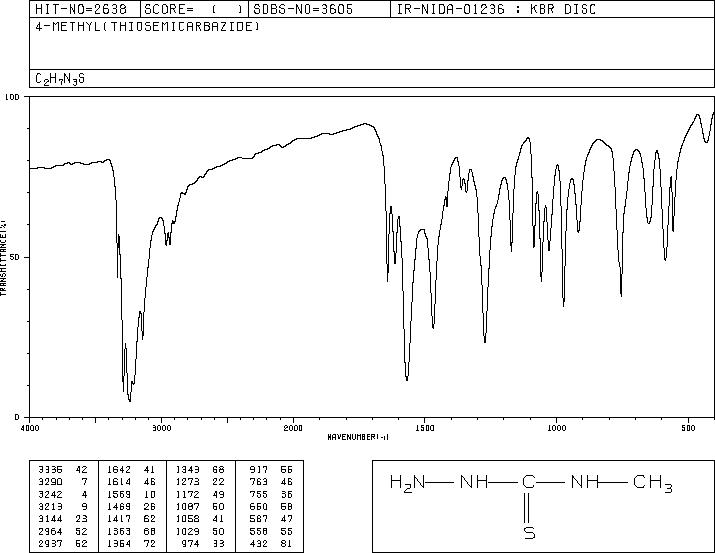

KBr disc

  • 圖譜

nujol mull

  • 圖譜

  • 圖譜

×
