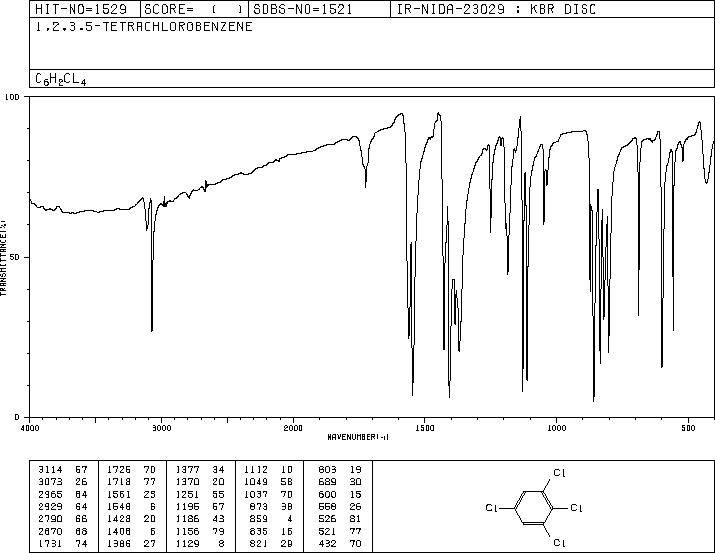

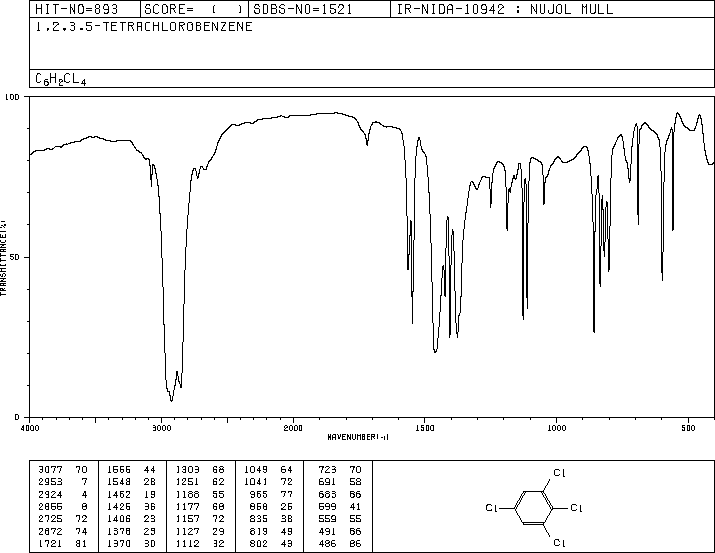

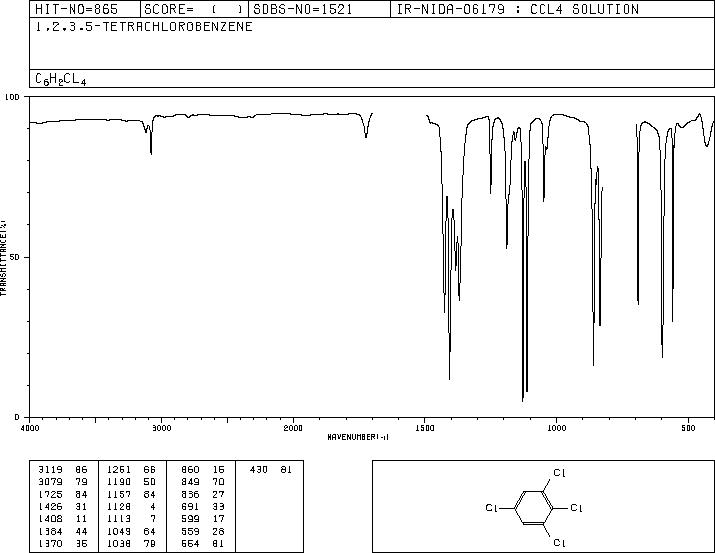

1,2,3,5-四氯苯(634-90-2)紅外圖譜(IR2)
InChI:InChI=1S/C6H2Cl4/c7-3-1-4(8)6(10)5(9)2-3/h1-2H
InChIKey: QZYNWJQFTJXIRN-UHFFFAOYSA-N
Smiles:C1(Cl)=CC(Cl)=CC(Cl)=C1Cl
-
Mass
MS-NW-8753
1,2,3,5-tetrachlorobenzene
C6H2Cl4 (Mass of molecular ion: 214)
Source Temperature: 260 °C
Sample Temperature: 140 °C
Reservoir, 75 eV
36.0 2.1
37.0 3.0
38.0 1.0
49.0 1.7
50.0 1.0
54.0 1.9
61.0 1.4
71.0 1.1
71.5 2.5
72.0 3.6
72.5 1.7
73.0 6.6
74.0 10.1
84.0 5.3
86.0 1.8
89.0 3.2
90.0 3.1
91.0 1.0
107.0 7.1
108.0 14.2
109.0 10.8
110.0 3.4
111.0 2.4
118.0 1.0
143.0 9.5
144.0 4.4
145.0 6.4
146.0 2.6
147.0 1.1
178.0 1.7
179.0 18.5
180.0 2.8
181.0 17.8
182.0 1.6
183.0 5.7
214.0 78.1
215.0 5.3
216.0 100.0
217.0 6.7
218.0 48.0
219.0 3.2
220.0 10.4
-

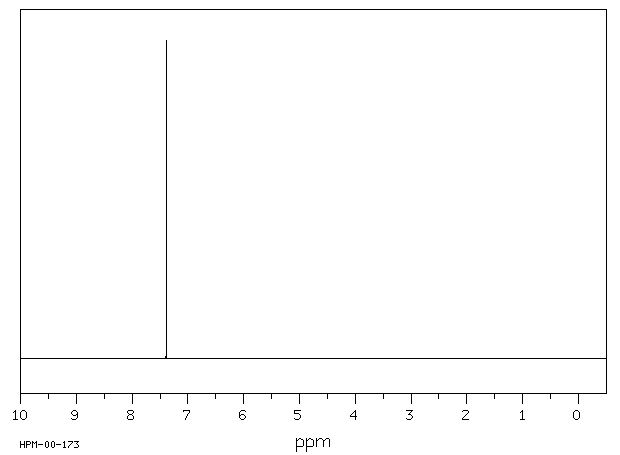

| 1H NMR |
300 MHz |
| C6 H2 Cl4
|
0.048 g : 0.5 ml CDCl3
|
| 1,2,3,5-tetrachlorobenzene
|
 |
Parameter ppm Hz
D(A) 7.389
|
Hz ppm Int.
2216.70 7.389 1000
