626-03-9

2,4-二羥基吡啶(626-03-9)紅外圖譜(IR2)

產(chǎn)品名稱:2,4-二羥基吡啶

CAS:626-03-9

分子式:C5H5NO2

分子量: 111.1

InChI:InChI=1S/C5H5NO2/c7-4-1-2-6-5(8)3-4/h1-3H,(H2,6,7,8)

InChIKey: ZEZJPIDPVXJEME-UHFFFAOYSA-N

Smiles:C1(=O)NC=CC(O)=C1

  • 圖譜
    Mass

    MS2001-00051WA
4-hydroxy-2-pyridone
C5H5NO2             (Mass of molecular ion:    111)


       Source Temperature: 210 °C
   Sample Temperature:  85 °C
   Direct, 70 eV


          26.0       2.3
      27.0       2.7
      28.0       8.3
      29.0       3.4
      37.0       2.2
      38.0       3.7
      39.0       3.4
      40.0       3.0
      41.0       3.0
      42.0       5.2
      43.0       4.0
      51.0       1.0
      52.0       1.8
      53.0       3.0
      54.0       3.2
      55.0       8.7
      56.0       1.1
      64.0       1.0
      65.0       1.0
      66.0       1.5
      67.0       1.0
      68.0       3.1
      69.0       6.3
      70.0      66.5
      71.0       2.5
      82.0       2.7
      83.0       8.2
     111.0     100.0
     112.0       5.9

400 MHz in DMSO-d6

  • 圖譜

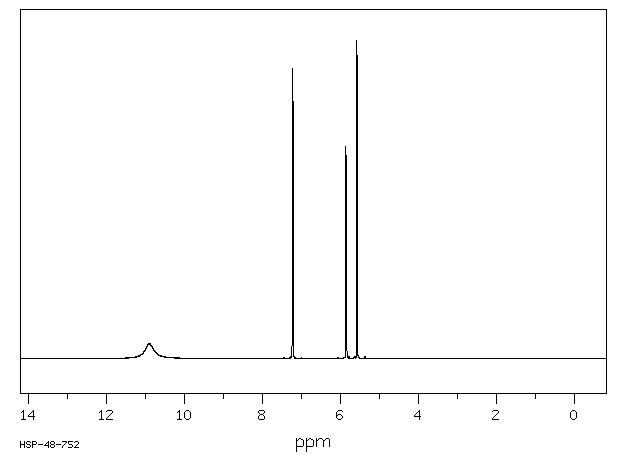

    1H NMR 399.65 MHz
    C5 H5 N O2 0.041 g : 0.5 ml DMSO-d6
    4-hydroxy-2-pyridone
    ChemicalStructure
        Assign.     Shift(ppm)

      A            11.
      B             7.228
      C             5.856
      D             5.582


         Hz     ppm     Int.


       4354.78  10.897     46
   2892.75   7.239    867
   2892.38   7.238    871
   2888.72   7.229     48
   2885.42   7.220    900
   2885.06   7.219    913
   2880.48   7.208     23
   2345.08   5.868    639
   2342.70   5.862    667
   2337.94   5.850    614
   2335.56   5.845    639
   2232.25   5.586    971
   2231.88   5.585   1000
   2229.87   5.580    976
   2229.50   5.579    952

in DMSO-d6

  • 圖譜

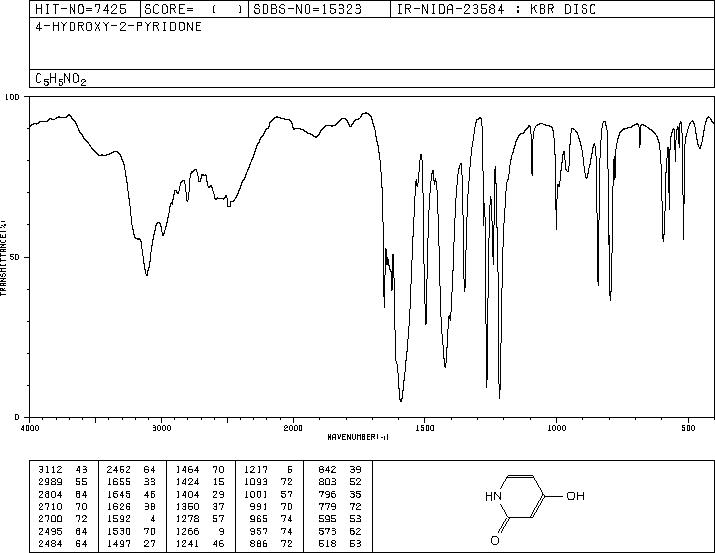

KBr disc

  • 圖譜

nujol mull

  • 圖譜

  • 圖譜

×
