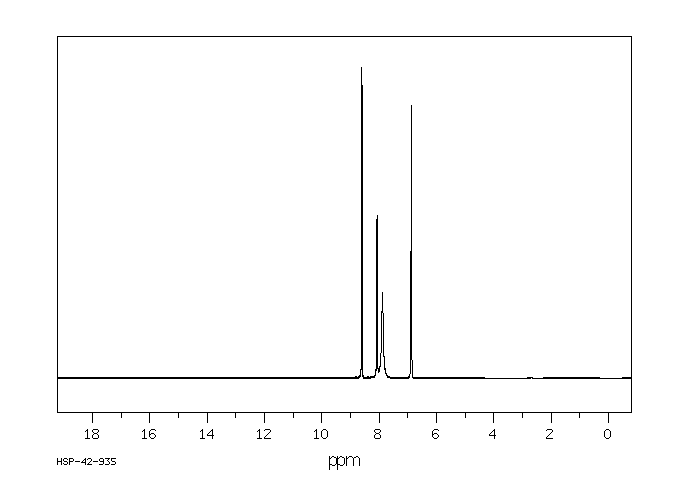

2-氨基-5-硝基苯甲酸(616-79-5)核磁圖(1HNMR)
InChI:InChI=1S/C7H6N2O4/c8-6-2-1-4(9(12)13)3-5(6)7(10)11/h1-3H,8H2,(H,10,11)
InChIKey: RUCHWTKMOWXHLU-UHFFFAOYSA-N
Smiles:C(O)(=O)C1=CC([N+]([O-])=O)=CC=C1N
-
Mass
MS-KW-0513
2-amino-5-nitrobenzoic acid
C7H6N2O4 (Mass of molecular ion: 182)
Source Temperature: 160 °C
Sample Temperature: 200 °C
Direct, 75 eV
17.0 1.5
18.0 7.3
26.0 1.0
27.0 3.2
28.0 9.7
29.0 1.1
30.0 6.3
37.0 3.2
38.0 7.1
39.0 16.4
40.0 3.5
41.0 7.8
42.0 1.2
44.0 3.6
44.5 1.0
45.0 3.0
50.0 3.0
51.0 7.5
52.0 22.4
53.0 16.8
54.0 3.9
55.0 1.2
61.0 4.4
62.0 11.8
63.0 38.5
64.0 12.5
65.0 14.3
66.0 2.7
67.0 1.3
68.0 2.0
74.0 2.1
75.0 4.5
76.0 1.3
77.0 2.4
78.0 7.6
79.0 7.2
80.0 30.4
81.0 3.5
88.0 1.6
89.0 5.7
90.0 45.0
91.0 14.0
92.0 3.4
106.0 27.0
107.0 4.3
108.0 17.5
109.0 1.5
117.0 1.4
118.0 6.0
119.0 4.0
134.0 26.3
135.0 2.7
136.0 6.0
137.0 3.5
138.0 1.3
148.0 6.1
152.0 9.8
164.0 75.7
165.0 8.7
166.0 4.8
182.0 100.0
183.0 9.1
184.0 1.2
