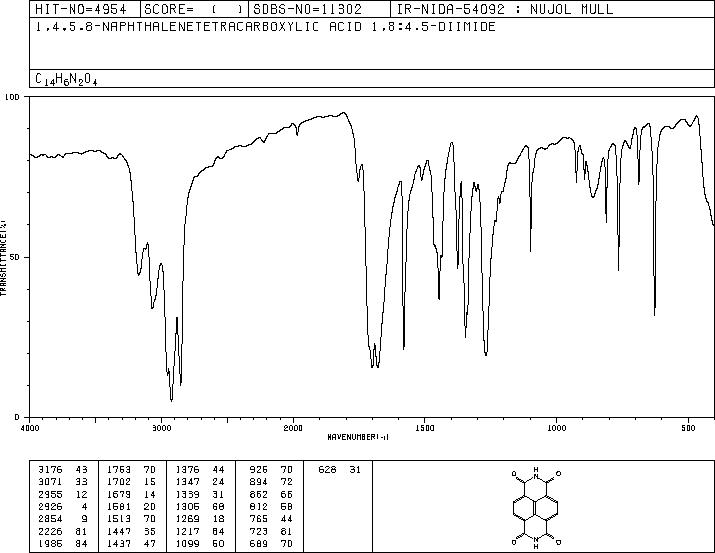

1,4,5,8-萘四甲酰基二酰亞胺(5690-24-4)紅外圖譜(IR2)
分子式:C14H6N2O4
分子量: 266.21
InChI:InChI=1S/C14H6N2O4/c17-11-5-1-2-6-10-8(14(20)16-12(6)18)4-3-7(9(5)10)13(19)15-11/h1-4H,(H,15,17,19)(H,16,18,20)
InChIKey: BODUWJSFPLUDMP-UHFFFAOYSA-N
Smiles:C12=CC=C3C4C1=C(C=CC=4C(=O)NC3=O)C(=O)NC2=O
-

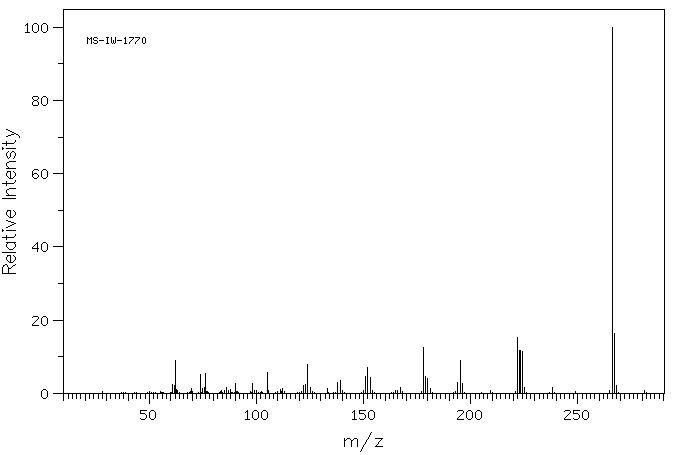

Mass
MS-IW-1770
1,4,5,8-naphthalenetetracarboxylic acid 1,8:4,5-diimide
C14H6N2O4 (Mass of molecular ion: 266)
Source Temperature: 190 °C
Sample Temperature: 180 °C
Direct, 75 eV
61.0 2.5
61.5 2.1
62.0 9.0
62.5 1.1
69.5 1.3
74.0 5.1
75.0 1.4
75.5 1.5
76.0 5.3
86.0 1.5
88.0 1.1
90.0 2.8
98.0 2.8
105.0 5.6
111.0 1.1
112.0 1.3
122.0 2.2
123.0 2.5
124.0 7.9
125.0 1.6
133.0 1.3
138.0 2.9
139.0 3.6
151.0 4.5
152.0 7.1
153.0 4.3
167.0 1.5
178.0 12.6
179.0 4.7
180.0 4.0
181.0 1.4
194.0 3.0
195.0 9.0
196.0 2.6
222.0 15.2
223.0 11.6
224.0 11.3
225.0 1.6
238.0 1.6
266.0 100.0
267.0 16.3
268.0 2.1
