5437-45-6

2-溴乙酸芐酯(5437-45-6)核磁圖(13CNMR)

產(chǎn)品名稱:2-溴乙酸芐酯

CAS:5437-45-6

分子式:C9H9BrO2

分子量: 229.07

  • 圖譜
    Mass

    MS-NW-9990
benzyl bromoacetate
C9H9BrO2            (Mass of molecular ion:    228)


       Source Temperature: 230 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV


          27.0       1.1
      38.0       1.0
      39.0       6.3
      41.0       1.7
      42.0       2.4
      43.0       5.5
      50.0       3.4
      51.0       9.0
      52.0       2.4
      62.0       1.2
      63.0       4.0
      64.0       1.3
      65.0      13.3
      77.0      14.1
      78.0       3.5
      79.0      22.3
      80.0       1.7
      89.0       7.5
      90.0      13.4
      91.0      60.9
      92.0       5.6
      93.0       2.5
      95.0       2.4
     105.0       7.3
     106.0       1.4
     107.0     100.0
     108.0      19.2
     109.0       1.3
     121.0       2.1
     123.0       2.0
     149.0      46.7
     150.0       4.7
     169.0       1.0
     228.0       1.3
     230.0       1.3

90 MHz in CDCl3

  • 圖譜

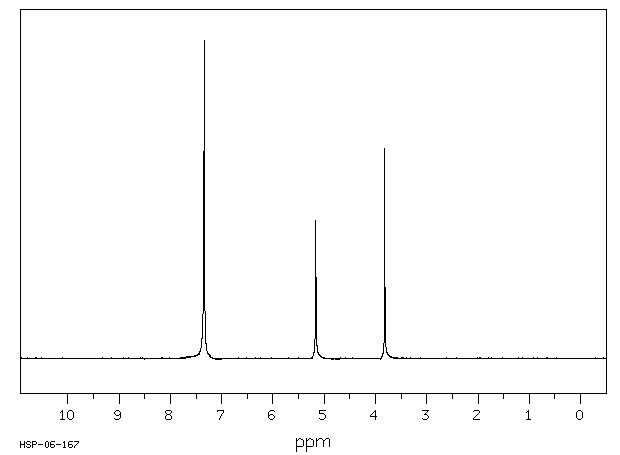

    1H NMR 89.56 MHz
    C9 H9 Br O2 0.05 ml : 0.5 ml CDCl3
    benzyl bromoacetate
    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.34
      B             5.164
      C             3.817


         Hz     ppm     Int.


        657.31   7.340   1000
    462.56   5.165    435
    341.94   3.818    661

in CDCl3

  • 圖譜

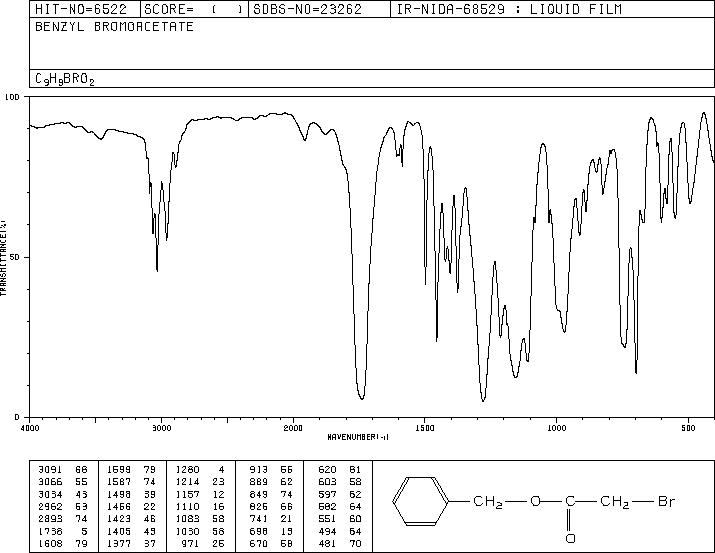

liquid film

  • 圖譜

4880 A,200 M,liquid

  • 圖譜

×
