443-88-9

2,6-二甲基氟苯(443-88-9)核磁圖(1HNMR)

產(chǎn)品名稱:2,6-二甲基氟苯

CAS:443-88-9

分子式:C8H9F

分子量: 124.16

InChI:InChI=1S/C8H9F/c1-6-4-3-5-7(2)8(6)9/h3-5H,1-2H3

InChIKey: JTAUTNBVFDTYTI-UHFFFAOYSA-N

Smiles:C1(C)=CC=CC(C)=C1F

  • 圖譜
    Mass

    MS-KW-0549
2-fluoro-m-xylene
C8H9F               (Mass of molecular ion:    124)


       Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          27.0       1.9
      39.0       3.4
      50.0       2.3
      51.0       7.0
      52.0       1.1
      57.0       3.3
      60.0       1.5
      61.0       3.3
      62.0       1.3
      63.0       2.8
      70.0       1.3
      74.0       1.1
      75.0       2.6
      77.0       8.3
      78.0       1.5
      81.0       1.5
      83.0       4.8
      95.0       2.1
      96.0       4.0
      97.0       2.8
     101.0       3.8
     102.0       1.5
     103.0       5.6
     107.0       1.5
     109.0     100.0
     110.0       7.5
     121.0       2.6
     122.0       2.7
     123.0      31.3
     124.0      56.3
     125.0       4.7

400 MHz in CDCl3

  • 圖譜

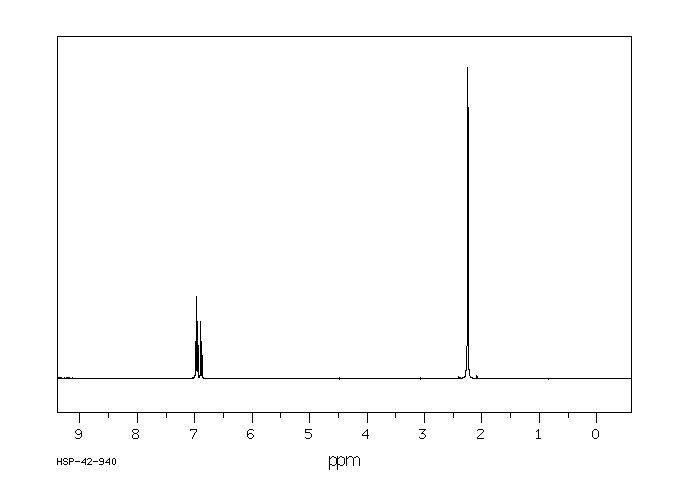

    1H NMR 399.65 MHz
    C8H9F 0.05 ml : 0.5 ml CDCl3
    2-fluoro-1,3-dimethylbenzene
    ChemicalStructure
        Assign.     Shift(ppm)

     A           6.960
     B           6.883
     C           2.238


         Hz     ppm     Int.


       2790.90   6.982    119
   2790.53   6.981    116
   2783.45   6.963    264
   2776.25   6.945    184
   2775.88   6.944    182
   2757.45   6.898    184
   2750.74   6.881    115
   2749.15   6.877    120
   2742.56   6.861     74
    895.63   2.241   1000
    893.32   2.235    933

in CDCl3
