2,7-二硝基-9-芴酮(31551-45-8)Raman光譜

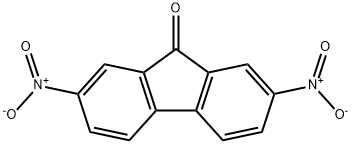

InChI:InChI=1S/C13H6N2O5/c16-13-11-5-7(14(17)18)1-3-9(11)10-4-2-8(15(19)20)6-12(10)13/h1-6H
InChIKey: HDVGAFBXTXDYIB-UHFFFAOYSA-N
Smiles:C1(=O)C2=C(C=CC([N+]([O-])=O)=C2)C2=C1C=C([N+]([O-])=O)C=C2
-
Mass
MS-NW-7283
2,7-dinitro-9-fluorenone
C13H6N2O5 (Mass of molecular ion: 270)
Source Temperature: 170 °C
Sample Temperature: 180 °C
Direct, 75 eV
18.0 1.6
30.0 6.2
50.0 2.6
51.0 1.0
61.0 1.3
62.0 3.6
63.0 2.7
74.0 9.8
75.0 7.2
76.0 4.1
86.0 3.2
87.0 4.9
88.0 1.8
98.0 6.7
99.0 5.4
100.0 4.5
110.0 1.8
111.0 2.9
112.0 1.3
122.0 2.1
123.0 3.2
124.0 2.8
126.0 3.3
137.0 4.5
138.0 13.4
139.0 2.0
149.0 6.7
150.0 56.6
151.0 8.0
154.0 5.7
166.0 9.0
167.0 1.3
178.0 11.6
179.0 1.9
182.0 4.3
194.0 5.0
196.0 25.8
197.0 3.6
210.0 5.8
224.0 22.2
225.0 3.4
240.0 15.2
241.0 2.3
254.0 1.0
270.0 100.0
271.0 15.5
272.0 2.2
