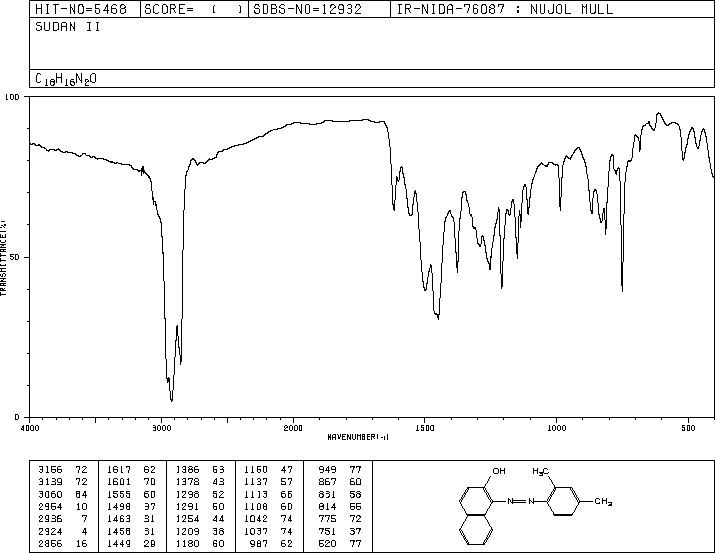

蘇丹紅 II(3118-97-6)紅外圖譜(IR1)
分子式:C18H16N2O
分子量: 276.33
InChI:InChI=1S/C18H16N2O/c1-12-7-9-16(13(2)11-12)19-20-18-15-6-4-3-5-14(15)8-10-17(18)21/h3-11,21H,1-2H3
InChIKey: JBTHDAVBDKKSRW-UHFFFAOYSA-N
Smiles:C1(N=NC2=CC=C(C)C=C2C)=C2C(C=CC=C2)=CC=C1O
-
Mass
MS-NW-7303
Sudan II
C18H16N2O (Mass of molecular ion: 276)
Source Temperature: 160 °C
Sample Temperature: 130 °C
Direct, 75 eV
18.0 4.1
27.0 2.9
39.0 6.0
41.0 1.9
50.0 2.0
51.0 6.9
52.0 2.2
53.0 3.3
62.0 1.5
63.0 5.0
64.0 1.5
65.0 6.4
66.0 1.1
74.0 1.4
75.0 4.1
76.0 2.7
77.0 21.6
78.0 4.7
79.0 11.8
80.0 1.3
88.0 1.7
89.0 5.7
90.0 1.4
91.0 7.0
92.0 2.4
93.0 1.5
101.0 6.5
102.0 4.5
103.0 9.5
104.0 3.9
105.0 55.5
106.0 8.0
107.0 3.0
113.0 2.2
114.0 9.0
115.0 43.6
116.0 5.9
117.0 1.5
118.0 5.9
119.0 9.6
120.0 13.4
121.0 4.2
122.0 1.5
127.0 1.3
128.0 10.0
129.0 2.5
130.0 3.0
132.0 1.1
133.0 4.9
138.0 4.2
142.0 4.8
143.0 79.7
144.0 12.8
145.0 1.5
156.0 3.8
158.0 3.2
159.0 2.1
169.0 4.1
170.0 1.5
171.0 13.2
172.0 1.6
189.0 1.4
202.0 1.6
203.0 1.7
204.0 1.5
205.0 2.2
215.0 2.7
216.0 1.6
218.0 2.8
219.0 1.9
229.0 1.0
230.0 1.2
231.0 4.2
232.0 6.0
233.0 7.1
234.0 1.6
245.0 5.2
246.0 1.8
247.0 17.9
248.0 10.8
249.0 1.8
259.0 10.6
260.0 3.4
261.0 15.2
262.0 4.5
275.0 16.0
276.0 100.0
277.0 21.5
278.0 2.5
