返回ChemicalBook首頁>CAS數據庫列表>2867-47-2更多圖譜> 甲基丙烯酸二甲氨乙酯(2867-47-2)核磁圖(1HNMR)

2867-47-2

甲基丙烯酸二甲氨乙酯(2867-47-2)核磁圖(1HNMR)

產品名稱:甲基丙烯酸二甲氨乙酯

CAS:2867-47-2

分子式:C8H15NO2

分子量: 157.21

InChI:InChI=1S/C8H15NO2/c1-7(2)8(10)11-6-5-9(3)4/h1,5-6H2,2-4H3

InChIKey: JKNCOURZONDCGV-UHFFFAOYSA-N

Smiles:C(OCCN(C)C)(=O)C(C)=C

  • 圖譜
    Mass

    MS-NW-0573
2-(dimethylamino)ethyl methacrylate
C8H15NO2            (Mass of molecular ion:    157)


       Source Temperature: 270 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV


          15.0       1.9
      18.0       1.3
      28.0       1.3
      30.0       2.6
      39.0       2.8
      41.0       5.2
      42.0       5.9
      43.0       1.7
      44.0       1.9
      56.0       2.4
      57.0       1.5
      58.0     100.0
      59.0       3.7
      69.0       2.8
      71.0      12.6
      72.0       2.1

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C8 H15 N O2 0.05 ml : 0.5 ml CDCl3
    2-(dimethylamino)ethyl methacrylate

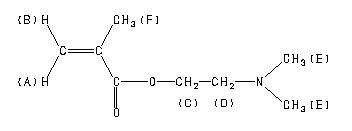

    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.113
      B             5.561
      C             4.256
      D             2.622
      E             2.299
      F             1.945


         Hz     ppm     Int.


        548.81   6.128     56
    547.88   6.118     67
    547.19   6.110     67
    546.19   6.099     55
    499.69   5.580     61
    498.06   5.562     84
    496.50   5.544     56
    387.19   4.324     84
    381.38   4.259    164
    375.44   4.193     98
    240.63   2.687     77
    234.75   2.622    130
    228.94   2.557     68
    206.00   2.301   1000
    175.56   1.961    198
    174.56   1.950    237
    174.00   1.943    243
    173.00   1.932    201

in CDCl3

  • 圖譜

liquid film

  • 圖譜

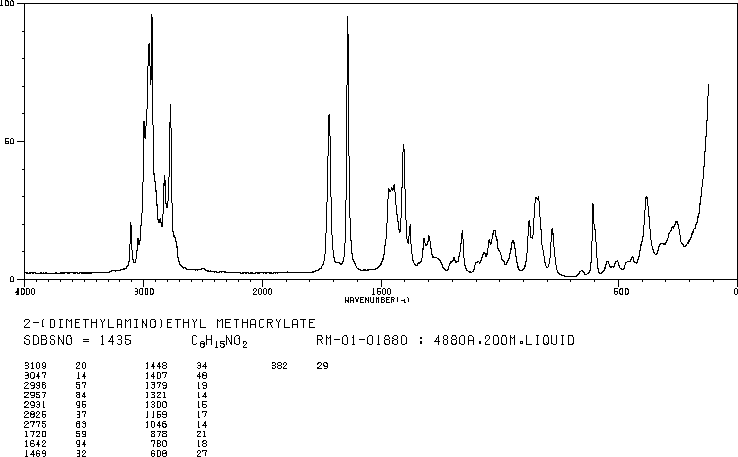

4880 A,200 M,liquid

  • 圖譜

×
