2646-17-5

溶劑橙 2(2646-17-5)核磁圖(1HNMR)

產(chǎn)品名稱:溶劑橙 2

CAS:2646-17-5

分子式:C17H14N2O

分子量: 262.31

InChI:InChI=1S/C17H14N2O/c1-12-6-2-5-9-15(12)18-19-17-14-8-4-3-7-13(14)10-11-16(17)20/h2-11,20H,1H3

InChIKey: BQFCCCIRTOLPEF-UHFFFAOYSA-N

Smiles:C1(N=NC2=CC=CC=C2C)=C2C(C=CC=C2)=CC=C1O

400 MHz in CDCl3

  • 圖譜

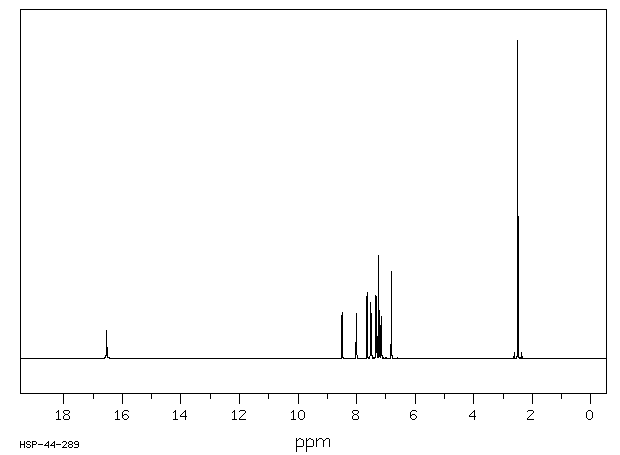

    1H NMR 399.65 MHz
    C17 H14 N2 O 0.033 g : 0.5 ml CDCl3
    1-(o-tolylazo)-2-naphthol
    ChemicalStructure
        Assign.     Shift(ppm)

      A            16.5
      B             8.501
      C             8.005
      D             7.640
      E             7.519
      F             7.500
      G             7.336
      J             7.317
      K             7.228
      L             7.160
      M             6.809
      N             2.490

     J(D,M)=9.3HZ


         Hz     ppm     Int.


       6607.91  16.535     87
   3401.61   8.512    135
   3393.80   8.492    146
   3203.37   8.016    133
   3195.56   7.996    142
   3058.11   7.652    194
   3048.58   7.629    208
   3009.77   7.532    131
   3005.86   7.522     97
   3004.39   7.518     93
   3001.95   7.512    176
   2998.54   7.503    142
   2997.56   7.501    140
   2990.48   7.483     98
   2989.26   7.480     79
   2939.94   7.357    104
   2938.72   7.354    105
   2932.37   7.338    197
   2931.64   7.336    195
   2925.05   7.320    163
   2923.83   7.316    184
   2915.77   7.296     70
   2892.09   7.237    323
   2884.77   7.219    151
   2868.41   7.178    103
   2867.43   7.175    105
   2861.08   7.159    133
   2860.11   7.157    132
   2853.76   7.141     52
   2852.54   7.138     50
   2726.07   6.822    274
   2716.80   6.798    263
    995.36   2.491   1000

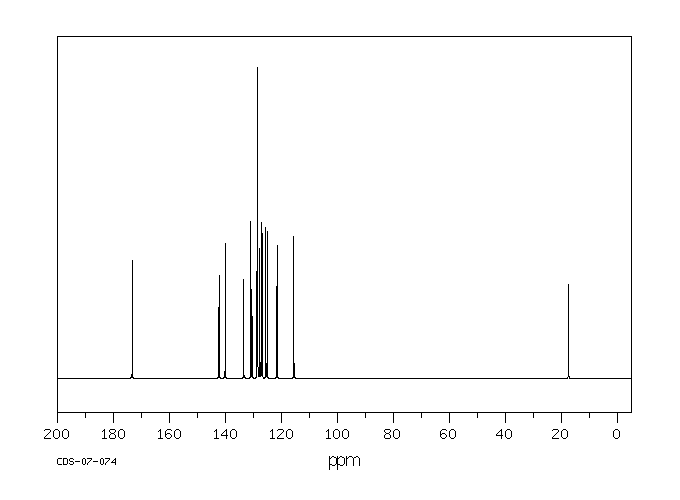

in CDCl3

  • 圖譜

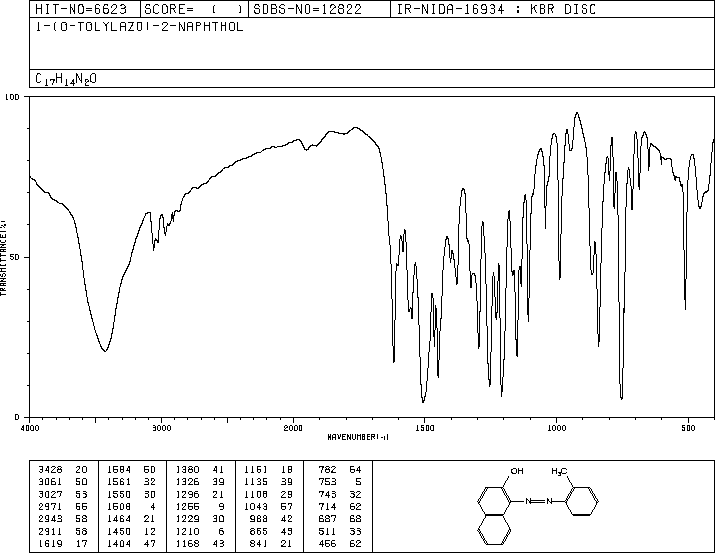

KBr disc

  • 圖譜

×
