26074-52-2

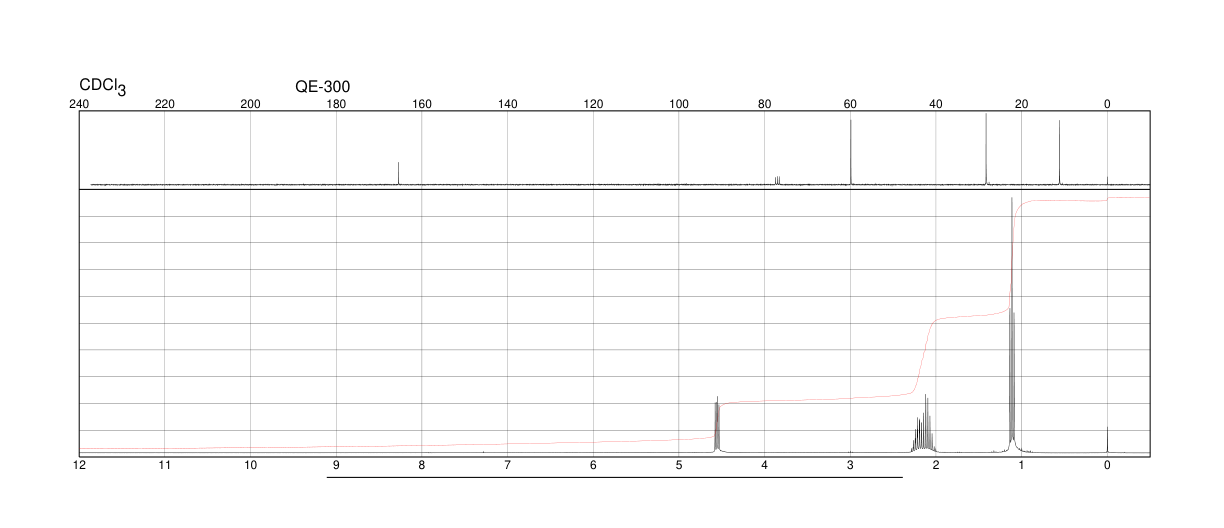

2-溴丁酰溴(26074-52-2)核磁圖(1HNMR)

產(chǎn)品名稱:2-溴丁酰溴

CAS:26074-52-2

分子式:C4H6Br2O

分子量: 229.9

InChI:InChI=1S/C4H6Br2O/c1-2-3(5)4(6)7/h3H,2H2,1H3

InChIKey: HHKDBXNYWNUHPL-UHFFFAOYSA-N

Smiles:C(Br)(=O)C(Br)CC

  • 圖譜
    Mass

    MS-NW-2820
2-bromobutyryl bromide
C4H6Br2O            (Mass of molecular ion:    228)


       Source Temperature: 280 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          15.0       2.2
      26.0       5.3
      27.0      17.5
      28.0       1.0
      29.0       1.7
      37.0       2.5
      38.0       4.4
      39.0      25.4
      40.0       3.7
      41.0     100.0
      42.0       6.2
      55.0      17.3
      69.0       1.7
      70.0       2.6
      79.0       3.7
      80.0       3.0
      81.0       3.5
      82.0       2.9
      93.0       3.0
      95.0       2.6
     105.0       1.1
     107.0       2.3
     109.0       1.1
     120.0       1.5
     121.0      50.1
     122.0       2.7
     123.0      49.6
     124.0       1.6
     149.0      32.2
     150.0       2.0
     151.0      31.8
     152.0       1.4
     207.0       1.2

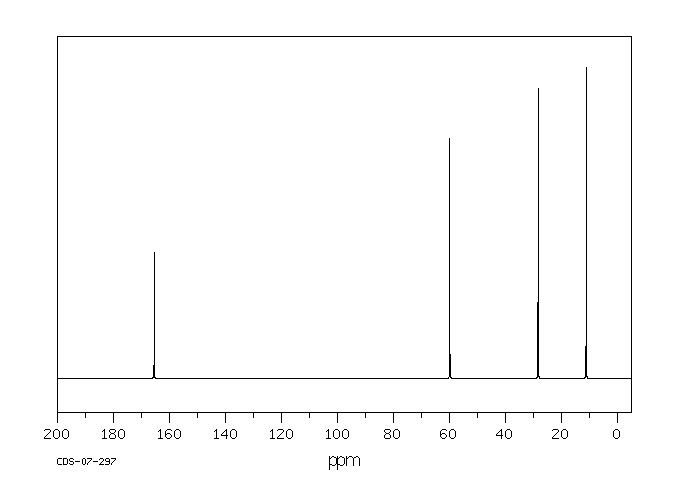

  • 圖譜

in CDCl3

  • 圖譜

liquid film

  • 圖譜

×
