返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>20265-96-7更多圖譜> 4-氯苯胺鹽酸鹽(20265-96-7)紅外圖譜(IR1)

20265-96-7

4-氯苯胺鹽酸鹽(20265-96-7)紅外圖譜(IR1)

產(chǎn)品名稱:4-氯苯胺鹽酸鹽

CAS:20265-96-7

分子式:C6H7Cl2N

分子量: 164.03

InChI:InChI=1S/C6H6ClN.ClH/c7-5-1-3-6(8)4-2-5;/h1-4H,8H2;1H

InChIKey: ISJBQSJDQZLCSF-UHFFFAOYSA-N

Smiles:C1(N)=CC=C(Cl)C=C1.Cl

  • 圖譜

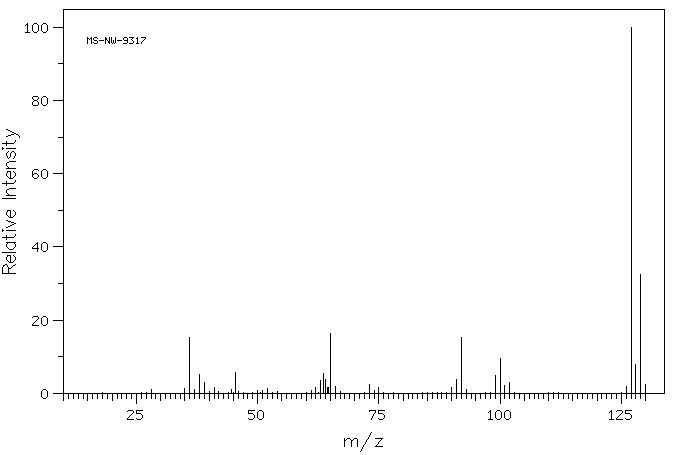

    Mass

    MS-NW-9317
p-chloroaniline hydrochloride
C6H6ClN HCl         (Mass of molecular ion:    127)


       Source Temperature: 140 °C
   Sample Temperature: 120 °C
   Direct, 75 eV


          28.0       1.1
      35.0       1.2
      36.0      15.2
      37.0       1.0
      38.0       5.2
      39.0       2.9
      41.0       1.7
      44.5       1.0
      45.5       5.7
      52.0       1.4
      62.0       1.5
      63.0       3.4
      63.5       5.4
      64.0       3.8
      64.5       1.7
      65.0      16.3
      66.0       1.9
      73.0       2.3
      75.0       1.5
      90.0       1.6
      91.0       3.9
      92.0      15.3
      93.0       1.1
      99.0       4.9
     100.0       9.5
     101.0       2.2
     102.0       3.0
     126.0       2.0
     127.0     100.0
     128.0       7.8
     129.0      32.4
     130.0       2.3

90 MHz in D2O

  • 圖譜

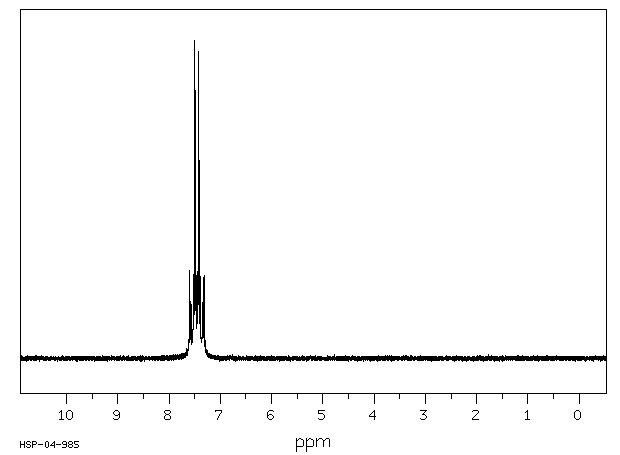

    1H NMR 89.56 MHz
    C6 H6 Cl N 0.040 g : 0.5 ml D2O
    p-chloroaniline hydrochloride
    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.52
      B             7.39

     THE SOLVENT SIGNAL REMOVED.


         Hz     ppm     Int.


        680.38   7.597    277
    679.81   7.591    180
    677.75   7.568    169
    673.88   7.525    263
    671.31   7.496   1000
    669.19   7.472    261
    666.50   7.442    274
    664.38   7.419    967
    661.81   7.390    256
    657.88   7.346    175
    655.88   7.324    194
    655.19   7.316    261

in D2O

  • 圖譜

KBr disc

  • 圖譜

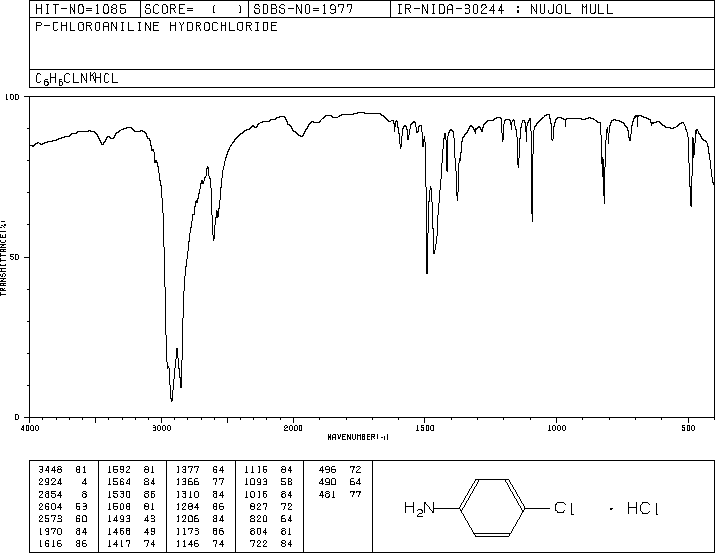

nujol mull

  • 圖譜

×
