返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>19819-98-8更多圖譜> 鄰甲基苯乙醇(19819-98-8)紅外圖譜(IR1)

19819-98-8

鄰甲基苯乙醇(19819-98-8)紅外圖譜(IR1)

產(chǎn)品名稱:鄰甲基苯乙醇

CAS:19819-98-8

分子式:C9H12O

分子量: 136.19

InChI:InChI=1S/C9H12O/c1-8-4-2-3-5-9(8)6-7-10/h2-5,10H,6-7H2,1H3

InChIKey: RUGISKODRCWQNE-UHFFFAOYSA-N

Smiles:C1(CCO)=CC=CC=C1C

  • 圖譜

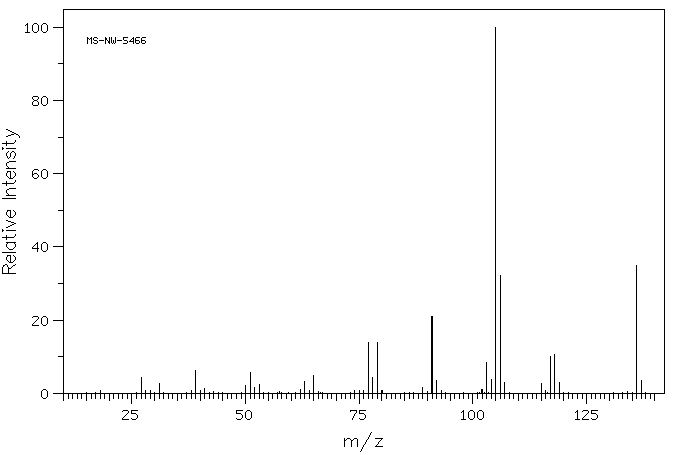

    Mass

    MS-NW-5466
o-methylphenethyl alcohol
C9H12O              (Mass of molecular ion:    136)


       Source Temperature: 260 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV


          27.0       4.3
      31.0       2.6
      39.0       6.3
      41.0       1.3
      50.0       2.2
      51.0       5.6
      52.0       1.7
      53.0       2.3
      62.0       1.1
      63.0       3.2
      65.0       4.8
      77.0      13.9
      78.0       4.4
      79.0      13.9
      89.0       1.6
      91.0      21.1
      92.0       3.4
     102.0       1.1
     103.0       8.4
     104.0       3.8
     105.0     100.0
     106.0      32.1
     107.0       2.9
     115.0       2.6
     117.0      10.2
     118.0      10.5
     119.0       3.0
     136.0      35.0
     137.0       3.6

90 MHz in CDCl3

  • 圖譜

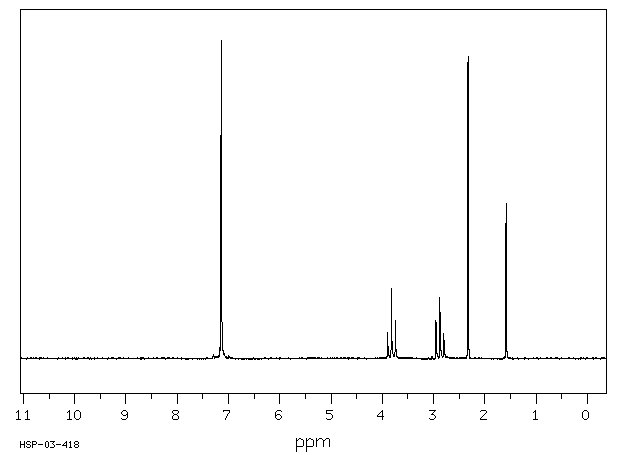

    1H NMR 89.56 MHz
    C9 H12 O 0.04 ml : 0.5 ml CDCl3
    o-methylphenethyl alcohol
    ChemicalStructure
        Assign.     Shift(ppm)

      A          7.16 to 7.11
      B             3.809
      C             2.887
      D             2.327
      E             1.59


         Hz     ppm     Int.


        641.75   7.166     33
    639.75   7.144   1000
    349.06   3.898     79
    348.56   3.892     81
    341.75   3.816    219
    335.31   3.744    117
    335.00   3.741    118
    264.56   2.954    119
    258.00   2.881    192
    250.81   2.801     80
    208.44   2.328    949
    142.00   1.586    487

in CDCl3

  • 圖譜

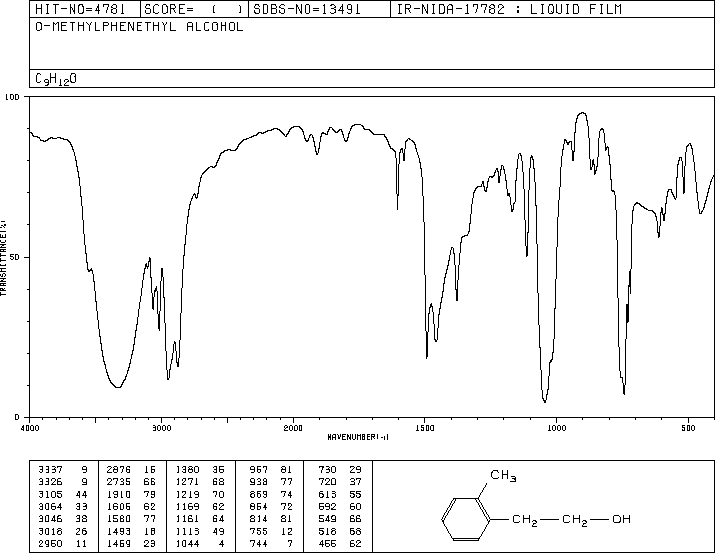

liquid film

  • 圖譜

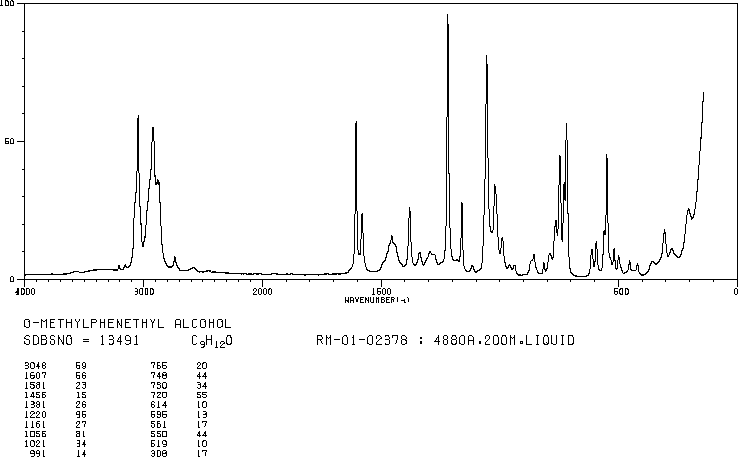

4880 A,200 M,liquid

  • 圖譜

×
