1706-11-2

2,5-二甲基苯甲醚(1706-11-2)核磁圖(1HNMR)

產(chǎn)品名稱:2,5-二甲基苯甲醚

CAS:1706-11-2

分子式:C9H12O

分子量: 136.19

InChI:InChI=1S/C9H12O/c1-7-4-5-8(2)9(6-7)10-3/h4-6H,1-3H3

InChIKey: SJZAUIVYZWPNAS-UHFFFAOYSA-N

Smiles:C1(C)=CC=C(C)C=C1OC

  • 圖譜

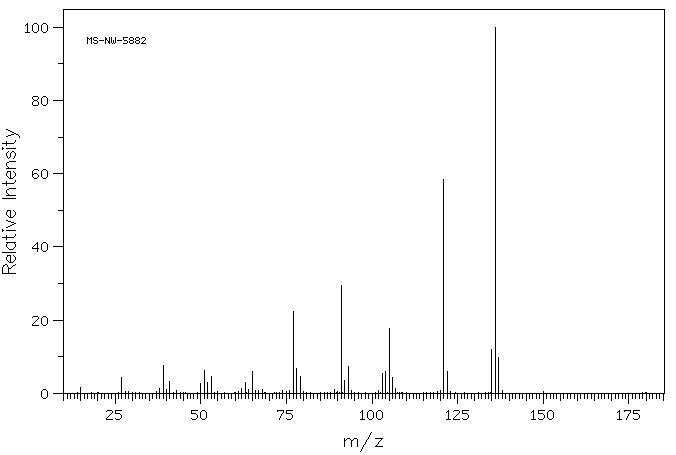

    Mass

    MS-NW-5882
2,5-dimethylanisole
C9H12O              (Mass of molecular ion:    136)


       Source Temperature: 270 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV


          15.0       1.6
      27.0       4.2
      38.0       1.3
      39.0       7.6
      40.0       1.0
      41.0       3.2
      50.0       2.8
      51.0       6.2
      52.0       2.9
      53.0       4.6
      62.0       1.2
      63.0       3.0
      64.0       1.0
      65.0       6.0
      68.0       1.0
      77.0      22.3
      78.0       6.9
      79.0       4.5
      89.0       1.1
      91.0      29.4
      92.0       3.6
      93.0       7.4
     103.0       5.4
     104.0       5.9
     105.0      17.8
     106.0       4.3
     107.0       1.2
     121.0      58.3
     122.0       5.9
     135.0      12.0
     136.0     100.0
     137.0       9.9

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C9 H12 O 0.04 ml : 0.5 ml CDCl3
    2,5-dimethylanisole
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.98
      B             6.64
      C             6.62
      D             3.778
      E             2.309
      F             2.168


         Hz     ppm     Int.


        630.13   7.036     37
    629.69   7.031     40
    629.56   7.030     40
    622.19   6.948     66
    621.75   6.943     69
    598.63   6.685     58
    592.31   6.614    129
    338.31   3.778   1000
    206.94   2.311    358
    206.56   2.307    378
    194.19   2.169    383

in CDCl3

  • 圖譜

liquid film

  • 圖譜

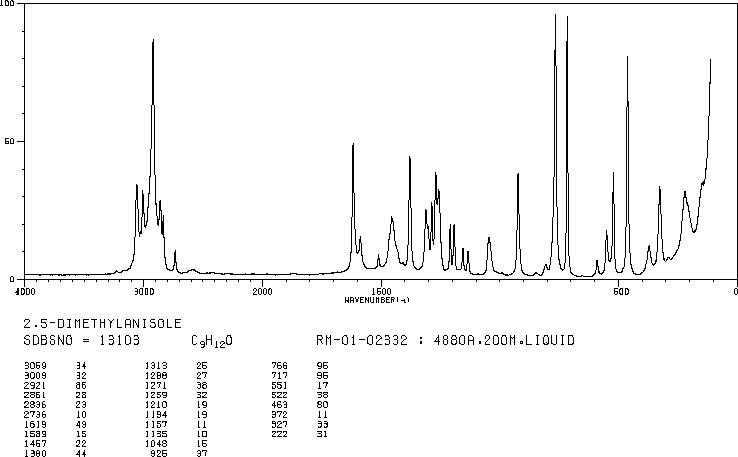

4880 A,200 M,liquid

  • 圖譜

×
