4,5-二氯咪唑(15965-30-7)核磁圖(13CNMR)
分子式:C3H2Cl2N2
分子量: 136.97
InChI:InChI=1S/C3H2Cl2N2/c4-2-3(5)7-1-6-2/h1H,(H,6,7)
InChIKey: QAJJXHRQPLATMK-UHFFFAOYSA-N
Smiles:C1NC(Cl)=C(Cl)N=1
-

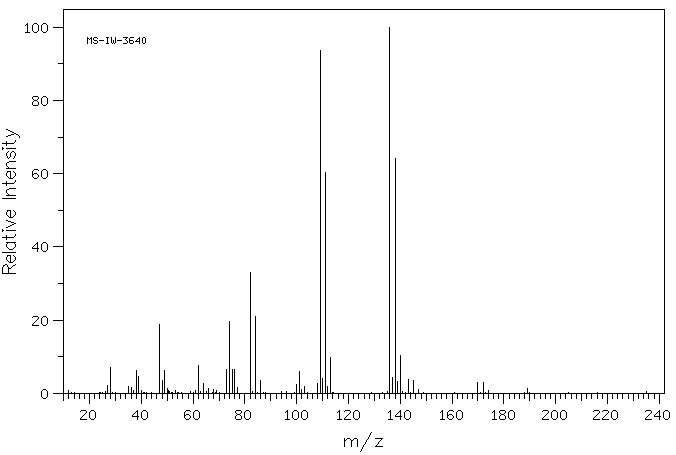

Mass
MS-IW-3640
4,5-dichloroimidazole
C3H2Cl2N2 (Mass of molecular ion: 136)
Source Temperature: 220 °C
Sample Temperature: 160 °C
Reservoir, 75 eV
27.0 2.1
28.0 7.2
35.0 1.9
36.0 1.7
38.0 6.3
39.0 4.6
47.0 18.7
48.0 3.5
49.0 6.3
50.0 1.3
62.0 7.5
64.0 2.8
66.0 1.3
68.0 1.1
73.0 6.6
74.0 19.5
75.0 6.6
76.0 6.4
77.0 1.5
82.0 32.9
84.0 21.1
86.0 3.4
100.0 2.5
101.0 5.9
102.0 1.1
103.0 2.0
108.0 2.8
109.0 93.8
110.0 4.1
111.0 60.3
112.0 1.9
113.0 9.9
136.0 100.0
137.0 4.4
138.0 64.2
139.0 3.2
140.0 10.3
143.0 3.9
145.0 3.5
147.0 1.1
170.0 3.0
172.0 2.9
189.0 1.2
-
| 1H NMR |
399.65 MHz |
| C3 H2 Cl2 N2
|
0.034 g : 0.5 ml DMSO-d6
|
| 4,5-dichloroimidazole
|
 |
Assign. Shift(ppm)
A 7.733
|
Hz ppm Int.
3090.45 7.733 1000
