151-18-8

3-氨基丙腈(151-18-8)核磁圖(13CNMR)

產(chǎn)品名稱:3-氨基丙腈

CAS:151-18-8

分子式:C3H6N2

分子量: 70.09

InChI:InChI=1S/C3H6N2/c4-2-1-3-5/h1-2,4H2

InChIKey: AGSPXMVUFBBBMO-UHFFFAOYSA-N

Smiles:C(#N)CCN

  • 圖譜
    Mass

    MS-IW-3444
3-aminopropionitrile
C3H6N2              (Mass of molecular ion:     70)


       Source Temperature: 220 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV


          14.0       1.9
      15.0       6.2
      17.0       3.0
      18.0       2.0
      25.0       1.3
      26.0       6.9
      27.0       8.6
      28.0      71.1
      29.0       5.7
      30.0     100.0
      31.0       5.4
      32.0       3.5
      33.5       1.3
      34.0       1.3
      38.0       8.2
      39.0      10.4
      40.0      20.1
      41.0      25.9
      42.0      62.8
      43.0       4.4
      50.0       1.3
      51.0       6.9
      52.0       9.6
      53.0       4.3
      54.0       5.0
      66.0       3.1
      67.0       4.6
      68.0       1.3
      69.0       7.2
      70.0       4.5

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C3 H6 N2 0.04 ml : 0.5 ml CDCl3
    3-aminopropionitrile
    ChemicalStructure
        Assign.     Shift(ppm)

      A             2.99
      B             2.49
      C             1.39


         Hz     ppm     Int.


        275.75   3.079    156
    274.81   3.069    179
    269.13   3.006    278
    268.44   2.998    470
    262.88   2.936    270
    262.25   2.929    312
    228.56   2.553    270
    227.88   2.545    295
    226.25   2.527     29
    222.31   2.483    421
    221.31   2.472    275
    216.00   2.412    157
    215.06   2.402    164
    124.25   1.388   1000

in CDCl3

  • 圖譜

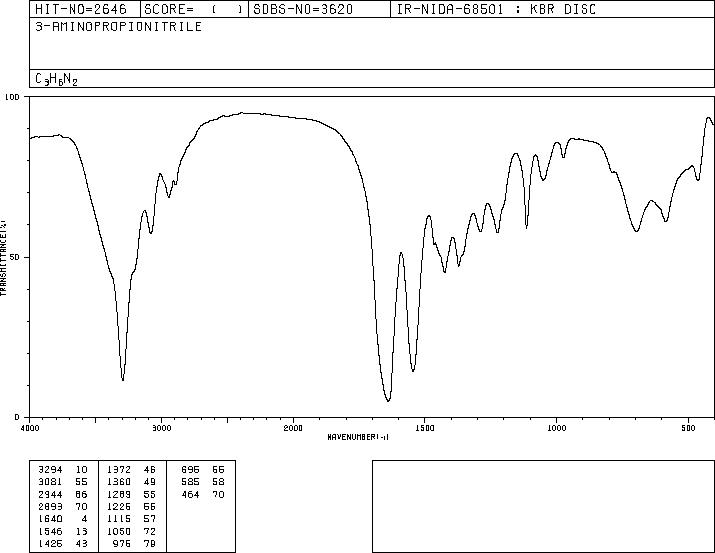

KBr disc

  • 圖譜

liquid film

  • 圖譜

nujol mull

  • 圖譜

×
