ChemicalBook
English   Japanese   Germany   Korea

150-76-5

對羥基苯甲醚(150-76-5)Raman光譜

產(chǎn)品名稱:對羥基苯甲醚

CAS:150-76-5

分子式:C7H8O2

分子量: 124.14

InChI:InChI=1S/C7H8O2/c1-9-7-4-2-6(8)3-5-7/h2-5,8H,1H3

InChIKey: NWVVVBRKAWDGAB-UHFFFAOYSA-N

Smiles:C1(O)=CC=C(OC)C=C1

  • 圖譜
    Mass

    MS-NW-1470
p-methoxyphenol
C7H8O2              (Mass of molecular ion:    124)


       Source Temperature: 250 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV


          15.0       2.2
      26.0       4.9
      27.0      11.0
      28.0       6.8
      29.0       2.7
      32.0       1.5
      37.0       1.5
      38.0       3.1
      39.0       9.8
      41.0       2.4
      50.0       3.1
      51.0       4.6
      52.0       5.4
      53.0      14.7
      54.0       4.5
      55.0       3.8
      61.0       1.3
      62.0       2.9
      63.0       4.6
      64.0       1.8
      65.0       5.6
      66.0       1.1
      80.0       1.4
      81.0      44.9
      82.0       3.0
      93.0       1.6
      95.0       2.4
     109.0      96.6
     110.0       6.6
     123.0       2.1
     124.0     100.0
     125.0       7.6

90 MHz in CDCl3

  • 圖譜

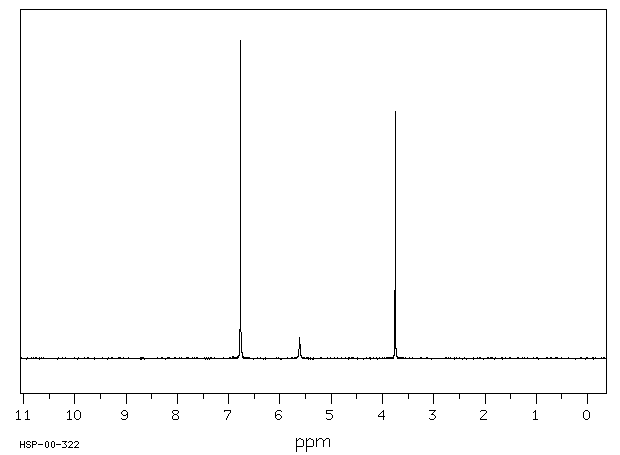

    1H NMR 89.56 MHz
    C7 H8 O2 0.045 g : 0.5 ml CDCl3
    p-methoxyphenol
    ChemicalStructure
        Assign.     Shift(ppm)

      A             6.77
      B             5.62
      C             3.750


         Hz     ppm     Int.


        606.00   6.767   1000
    502.94   5.616     65
    335.88   3.751    779

in CDCl3

  • 圖譜

KBr disc

  • 圖譜

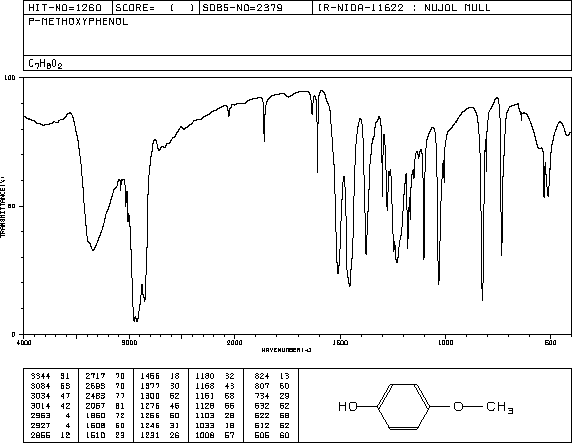

nujol mull

  • 圖譜

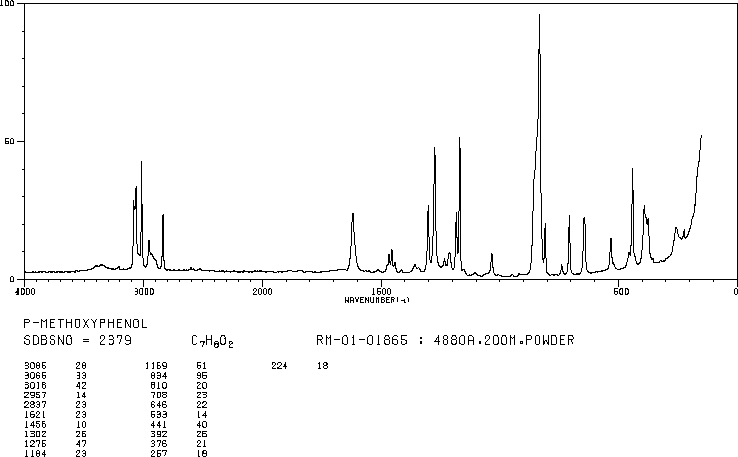

4880 A,200 M,powder

  • 圖譜

×
