142-63-2

哌嗪(六水)(142-63-2)質譜(MS)

產品名稱:哌嗪(六水)

CAS:142-63-2

分子式:C4H22N2O6

分子量: 194.23

InChI:InChI=1S/C4H10N2.6H2O/c1-2-6-4-3-5-1;;;;;;/h5-6H,1-4H2;6*1H2

InChIKey: AVRVZRUEXIEGMP-UHFFFAOYSA-N

Smiles:C1NCCNC1.O.O.O.O.O.O

  • 圖譜
    Mass

    MS-NW-1759
piperazine
C4H10N2 (H2O)       (Mass of molecular ion:     86)


       Source Temperature: 260 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV


          15.0       5.6
      17.0       1.1
      18.0       5.2
      26.0       4.2
      27.0      10.4
      28.0      41.1
      29.0      50.1
      30.0      41.7
      31.0       2.5
      32.0       1.1
      40.0       1.7
      41.0       6.5
      42.0      12.5
      43.0       9.8
      44.0     100.0
      45.0       2.5
      54.0       3.0
      55.0       3.7
      56.0      28.9
      57.0      26.7
      58.0       1.4
      59.0       1.5
      83.0       1.3
      85.0      21.1
      86.0      22.0
      87.0       1.1

parameter in D2O

parameter in CDCl3

  • 圖譜

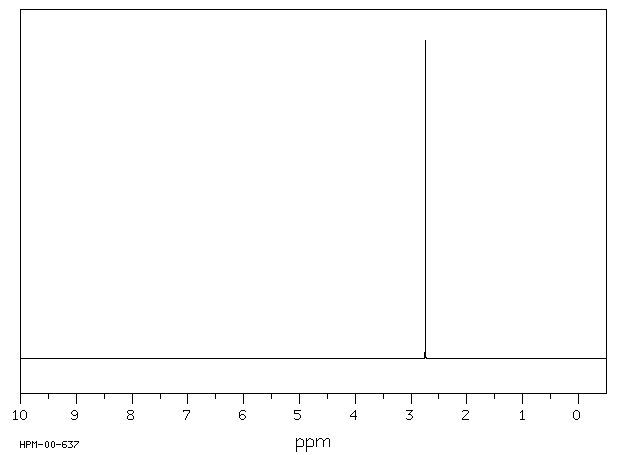

    1H NMR 300 MHz
    C4 H10 N2 0.039 g : 0.5 ml D2O
    piperazine
    ChemicalStructure
        Parameter     ppm  Hz

      D(A)         2.751


         Hz     ppm     Int.


        825.30   2.751   1000

  • 圖譜

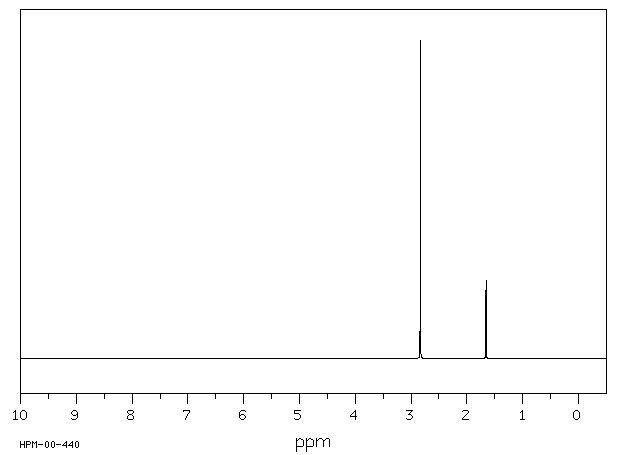

    1H NMR 300 MHz
    C4 H10 N2 0.040 g : 0.5 ml CDCl3
    piperazine
    ChemicalStructure
        Parameter     ppm  Hz

      D(A)         2.840
      D(B)         1.66


         Hz     ppm     Int.


        852.00   2.840   1000
    498.60   1.662    250

in CDCl3

in D2O

  • 圖譜

  • 圖譜

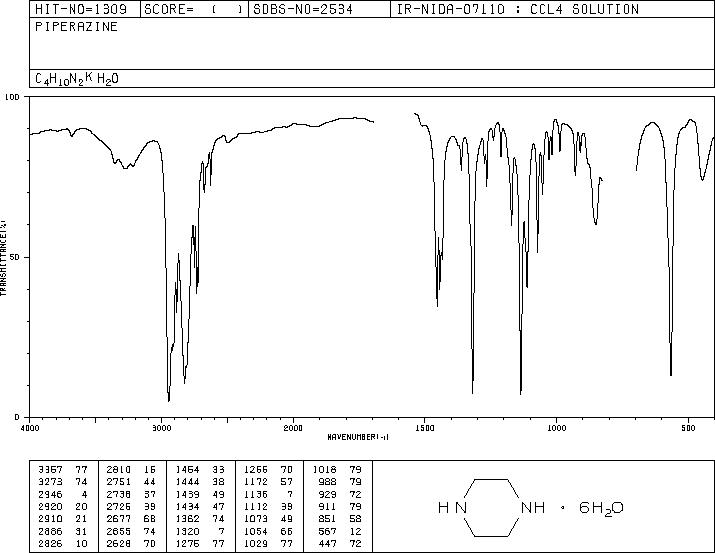

CCl4 solution

  • 圖譜

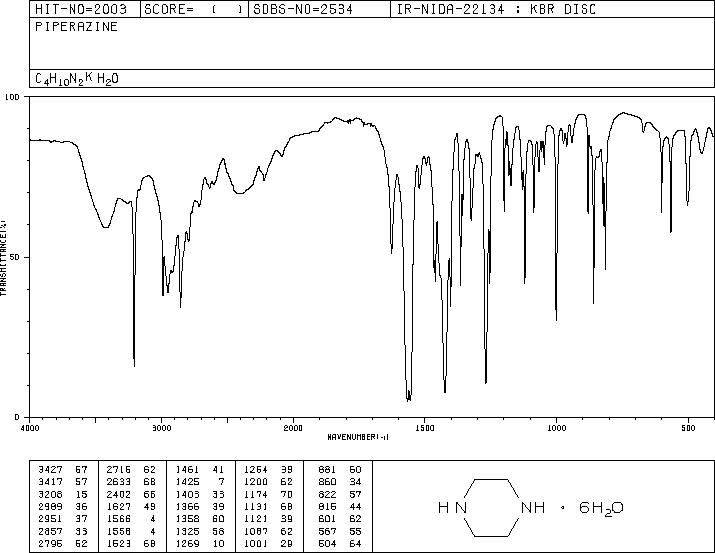

KBr disc

  • 圖譜

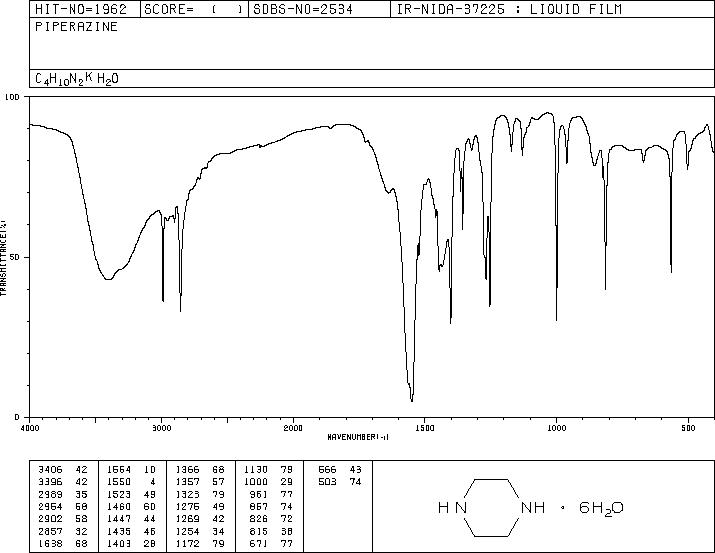

liquid film

  • 圖譜

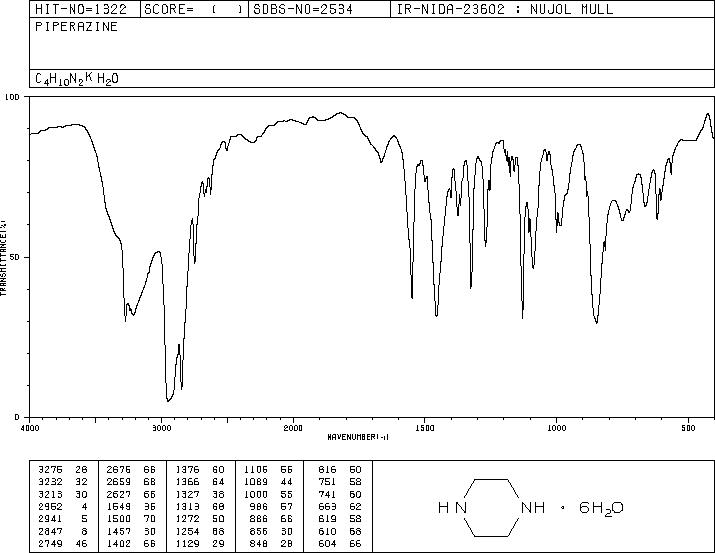

nujol mull

  • 圖譜

×
