返回ChemicalBook首頁>CAS數(shù)據(jù)庫列表>140-66-9更多圖譜> 對特辛基苯酚(140-66-9)紅外圖譜(IR1)

140-66-9

對特辛基苯酚(140-66-9)紅外圖譜(IR1)

產品名稱:對特辛基苯酚

CAS:140-66-9

分子式:C14H22O

分子量: 206.32

InChI:InChI=1S/C14H22O/c1-13(2,3)10-14(4,5)11-6-8-12(15)9-7-11/h6-9,15H,10H2,1-5H3

InChIKey: ISAVYTVYFVQUDY-UHFFFAOYSA-N

Smiles:C1(O)=CC=C(C(C)(C)CC(C)(C)C)C=C1

  • 圖譜
    Mass

    MS-NW-1752
p-(1,1,3,3-tetramethylbutyl)phenol
C14H22O             (Mass of molecular ion:    206)


       Source Temperature: 150 °C
   Sample Temperature: 120 °C
   Direct, 75 eV


          18.0       1.1
      27.0       2.1
      29.0       4.8
      39.0       3.8
      41.0      11.6
      43.0       2.3
      51.0       1.2
      53.0       1.0
      55.0       2.1
      57.0      10.5
      65.0       2.2
      77.0       3.6
      79.0       1.1
      91.0       4.1
      95.0       3.8
     107.0      10.6
     119.0       2.5
     121.0       1.5
     134.0       2.9
     135.0     100.0
     136.0      10.3
     206.0       4.8

90 MHz in CDCl3

  • 圖譜

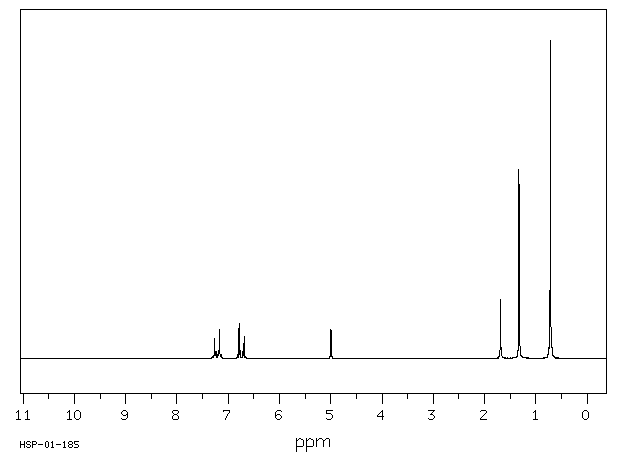

    1H NMR 89.56 MHz
    C14 H22 O 0.048 g : 0.5 ml CDCl3
    p-(1,1,3,3-tetramethylbutyl)phenol

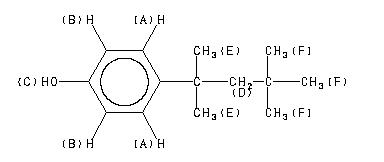

    ChemicalStructure
        Assign.     Shift(ppm)

      A             7.21
      B             6.75
      C             5.00
      D             1.687
      E             1.329
      F             0.715


         Hz     ppm     Int.


        650.88   7.268     63
    648.63   7.243     23
    644.31   7.195     24
    642.00   7.169     92
    607.94   6.789    109
    605.56   6.762     26
    601.31   6.715     22
    599.00   6.689     70
    447.31   4.995     91
    151.13   1.688    185
    119.00   1.329    596
     66.44   0.742     34
     66.31   0.741     34
     65.88   0.736     35
     64.00   0.715   1000

in CDCl3

  • 圖譜

CCl4 solution

  • 圖譜

KBr disc

  • 圖譜

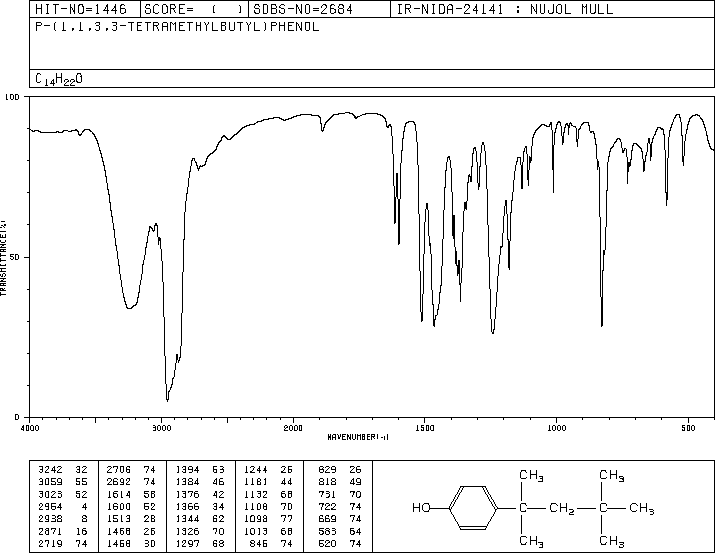

nujol mull

  • 圖譜

  • 圖譜

×
