二苯氨基脲(140-22-7)紅外圖譜(IR1)

產(chǎn)品名稱:二苯氨基脲

CAS:140-22-7

分子式:C13H14N4O

分子量: 242.28

InChI:InChI=1S/C13H14N4O/c18-13(16-14-11-7-3-1-4-8-11)17-15-12-9-5-2-6-10-12/h1-10,14-15H,(H2,16,17,18)

InChIKey: KSPIHGBHKVISFI-UHFFFAOYSA-N

Smiles:C(NNC1=CC=CC=C1)(NNC1=CC=CC=C1)=O

¹HNMR

IR1

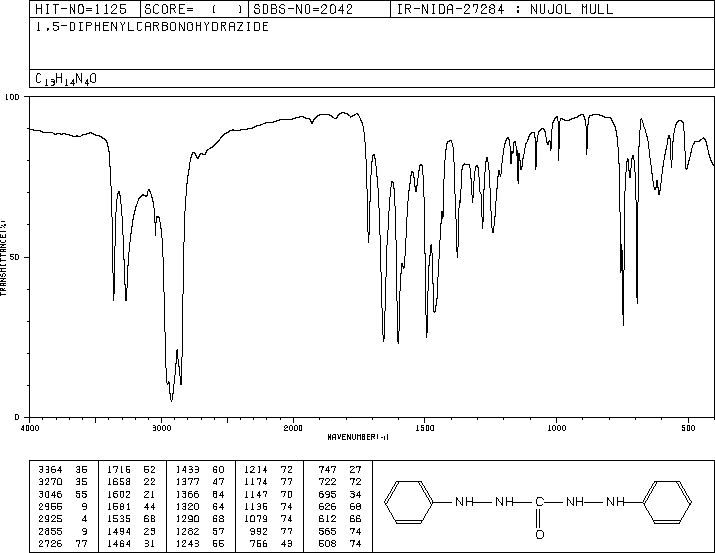

IR2

Mass

MS-NW-0393
1,5-diphenylcarbonohydrazide
C13H14N4O           (Mass of molecular ion:    242)

   Source Temperature: 200 °C
   Sample Temperature: 140 °C
   Direct, 75 eV

      18.0       1.5
      27.0       1.6
      28.0       1.9
      29.0       3.2
      37.0       1.2
      38.0       2.8
      39.0       9.6
      40.0       1.4
      41.0       1.4
      43.0       2.2
      44.0       9.2
      46.5       1.0
      50.0       4.8
      51.0      15.7
      52.0       4.6
      53.0       2.0
      54.0       1.0
      62.0       1.1
      63.0       3.9
      64.0       4.6
      65.0      21.8
      66.0       8.6
      67.0       1.1
      74.0       1.3
      76.0       1.6
      77.0      47.8
      78.0      14.5
      79.0       5.8
      80.0       4.1
      91.0      11.7
      92.0      31.4
      93.0     100.0
      94.0      10.7
     105.0       6.8
     106.0       9.4
     107.0      34.5
     108.0      77.8
     109.0       5.9
     134.0       3.2
     150.0       2.9
     151.0      36.9
     152.0       3.2
     242.0      11.2
     243.0       1.7

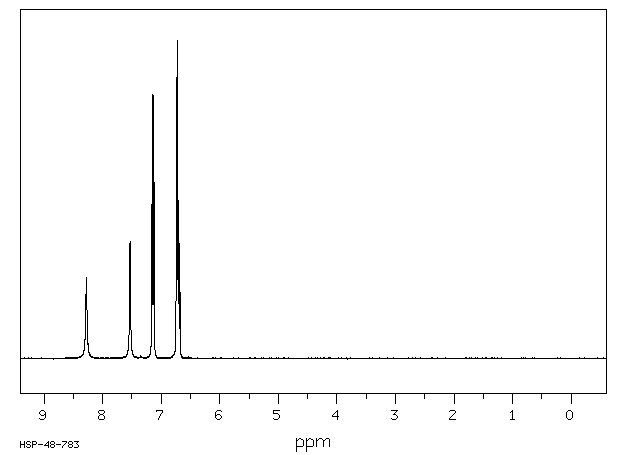

400 MHz in DMSO-d6

¹H NMR	399.65 MHz
C₁₃ H₁₄ N₄ O	0.040 g : 0.5 ml DMSO-d₆
1,5-diphenylcarbonohydrazide

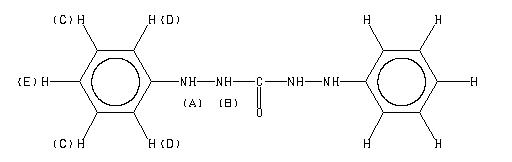

    Assign.     Shift(ppm)

      A     *1      8.28
      B     *1      7.53
      C             7.141
      D             6.73
      E             6.70

     Hz     ppm     Int.

   3325.81   8.322     22
   3323.36   8.316     27
   3322.63   8.314     30
   3307.86   8.277    254
   3292.97   8.240     27
   3291.50   8.236     22
   3024.90   7.569     23
   3023.93   7.567     25
   3009.77   7.532    370
   2861.57   7.161    484
   2853.64   7.141    832
   2845.95   7.122    554
   2839.11   7.104     23
   2703.61   6.765     23
   2702.88   6.764     26
   2692.75   6.738    885
   2684.94   6.719   1000
   2676.88   6.699    497
   2669.68   6.681    238

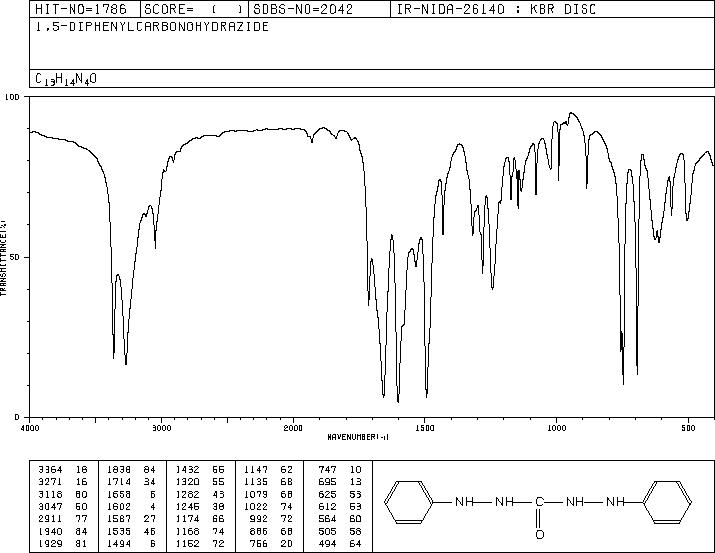

KBr disc
