正丁胺(109-73-9)紅外圖譜(IR2)

產(chǎn)品名稱:正丁胺

CAS:109-73-9

分子式:C4H11N

分子量: 73.14

InChI:InChI=1S/C4H11N/c1-2-3-4-5/h2-5H2,1H3

InChIKey: HQABUPZFAYXKJW-UHFFFAOYSA-N

Smiles:C(N)CCC

Mass

MS-NW-0938
butylamine
C4H11N              (Mass of molecular ion:     73)

   Source Temperature: 280 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      18.0       1.9
      27.0       3.5
      28.0       4.8
      29.0       2.1
      30.0     100.0
      31.0       1.8
      39.0       2.3
      41.0       3.1
      42.0       1.9
      43.0       1.2
      44.0       1.9
      56.0       1.2
      73.0       7.3

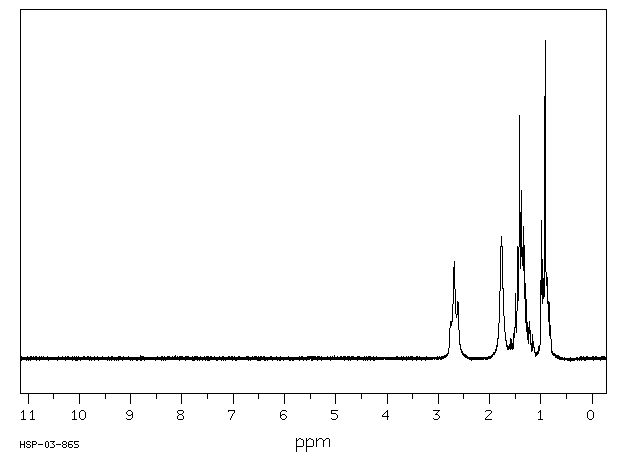

90 MHz in CDCl3

¹H NMR	89.56 MHz
C₄ H₁₁ N	0.04 ml : 0.5 ml CDCl₃
butylamine

    Assign.     Shift(ppm)

      A             2.680
      B             1.77
      C             1.43
      D             1.33
      E             0.92

     Hz     ppm     Int.

    247.44   2.763    117
    247.31   2.762    117
    246.00   2.747    109
    245.50   2.742    111
    240.88   2.690    305
    236.75   2.644    131
    234.44   2.618    179
    158.38   1.769    385
    141.75   1.583     64
    136.56   1.525     80
    135.19   1.510     89
    133.50   1.491    206
    130.19   1.454    353
    128.25   1.433    298
    127.38   1.423    403
    126.31   1.411    764
    122.94   1.373    529
    121.81   1.361    340
    120.75   1.349    349
    119.38   1.333    414
    117.25   1.310    241
    115.06   1.285    186
    112.50   1.257    112
    110.31   1.232     98
    109.38   1.222    118
    108.38   1.211     88
    103.56   1.157     75
     89.50   1.000    246
     88.44   0.988    433
     87.81   0.981    378
     86.44   0.966    199
     85.25   0.952    252
     83.94   0.938    241
     82.13   0.918   1000
     79.06   0.883    266
     77.50   0.866    186
     76.13   0.851    180
     74.69   0.834    177
     72.69   0.812    103
     72.13   0.806     99

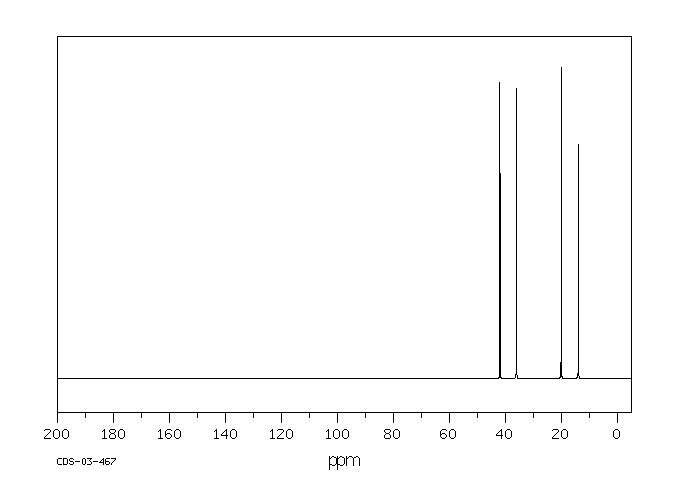

in CDCl3
