ChemicalBook
English   Japanese   Germany   Korea

109-60-4

乙酸丙酯(109-60-4)核磁圖(1HNMR)

產(chǎn)品名稱:乙酸丙酯

CAS:109-60-4

分子式:C5H10O2

分子量: 102.13

InChI:InChI=1S/C5H10O2/c1-3-4-7-5(2)6/h3-4H2,1-2H3

InChIKey: YKYONYBAUNKHLG-UHFFFAOYSA-N

Smiles:C(OCCC)(=O)C

  • 圖譜
    Mass

    MS-NW-1063
propyl acetate
C5H10O2             (Mass of molecular ion:    102)


       Source Temperature: 240 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV


          15.0       4.6
      27.0       6.4
      28.0       1.4
      29.0       1.7
      31.0       4.8
      39.0       2.7
      41.0       6.9
      42.0       7.9
      43.0     100.0
      44.0       2.3
      57.0       1.1
      59.0       5.1
      61.0      26.8
      72.0       1.3
      73.0      13.8

90 MHz in CDCl3

  • 圖譜

    1H NMR 89.56 MHz
    C5 H10 O2 0.04 ml : 0.5 ml CDCl3
    propyl acetate
    ChemicalStructure
        Assign.     Shift(ppm)

      A             4.023
      B             2.050
      C             1.65
      D             0.95


         Hz     ppm     Int.


        367.13   4.100    120
    360.44   4.025    250
    353.75   3.950    134
    183.56   2.050   1000
    158.56   1.771     45
    152.06   1.698     69
    151.56   1.693     68
    145.44   1.624     51
    144.50   1.614     92
    137.63   1.537     59
     91.56   1.023    157
     84.63   0.945    316
     83.88   0.937    174
     77.63   0.867     56
     76.88   0.859     92
     75.88   0.848     53

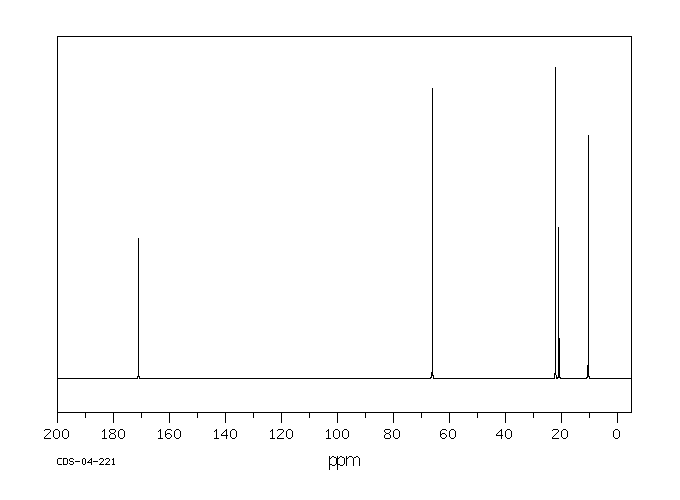

in CDCl3

  • 圖譜

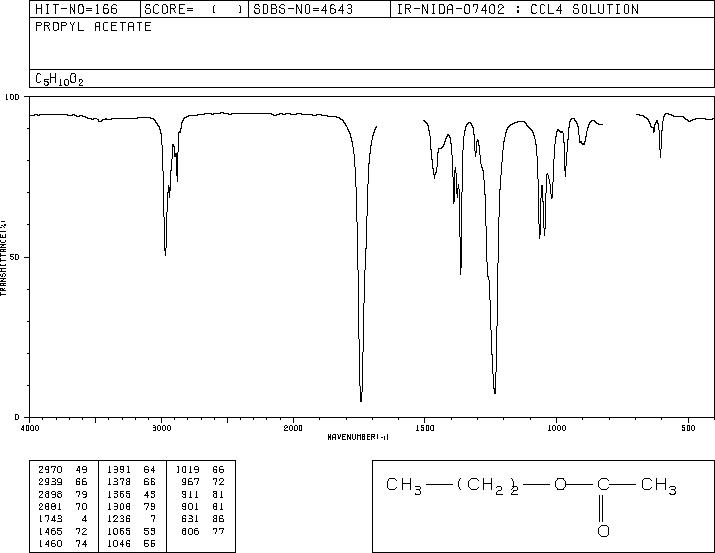

CCl4 solution

  • 圖譜

liquid film

  • 圖譜

4880 A,200 M,liquid

  • 圖譜

×
