108-20-3

異丙醚(108-20-3)紅外圖譜(IR1)

產(chǎn)品名稱:異丙醚

CAS:108-20-3

分子式:C6H14O

分子量: 102.17

InChI:InChI=1S/C6H14O/c1-5(2)7-6(3)4/h5-6H,1-4H3

InChIKey: ZAFNJMIOTHYJRJ-UHFFFAOYSA-N

Smiles:O(C(C)C)C(C)C

  • 圖譜
    Mass

    MS2015-05275CW
diisopropyl ether
C6H14O              (Mass of molecular ion:    102)


       Source Temperature: 250 °C
   Sample Temperature: 250 °C
   Reservoir, 70 eV


          15.0       1.3
      27.0       6.8
      29.0       1.1
      31.0       2.2
      38.0       1.6
      39.0       9.9
      40.0       2.7
      41.0      20.4
      42.0       7.8
      43.0      38.4
      44.0       1.8
      45.0     100.0
      46.0       2.2
      58.0       1.0
      59.0      12.7
      69.0       5.6
      87.0      36.9
      88.0       2.1
     102.0       1.9

in CDCl3

parameter in CDCl3

  • 圖譜

  • 圖譜

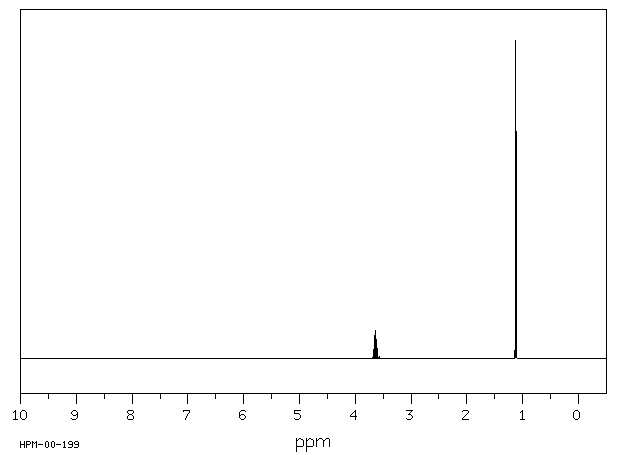

    1H NMR 300 MHz
    C6 H14 O 0.04 ml : 0.5 ml CDCl3
    diisopropyl ether
    ChemicalStructure
        Parameter     ppm  Hz

      D(A)         1.130
      D(B)         3.640
       J(A,B)          6.10


         Hz     ppm     Int.


       1104.28   3.681     30
   1098.16   3.661     75
   1092.07   3.640    101
   1085.98   3.620     77
   1079.88   3.600     32
    342.06   1.140   1000
    335.96   1.120    982

in CDCl3

  • 圖譜

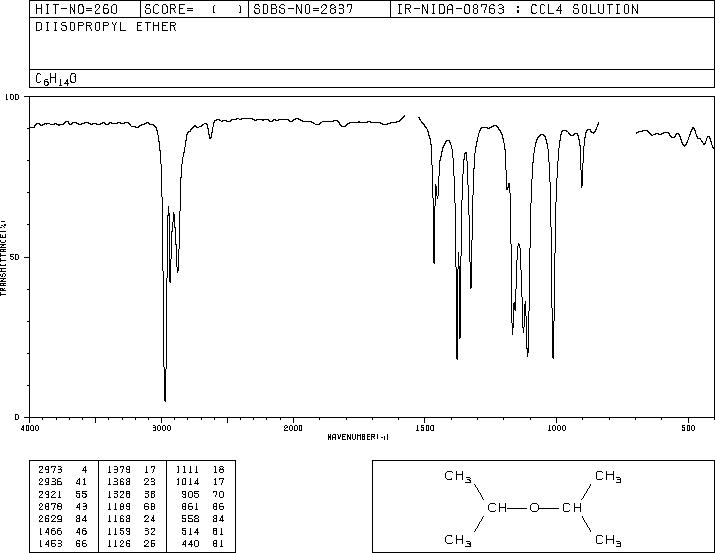

CCl4 solution

  • 圖譜

liquid film

  • 圖譜

4880 A,100M,liquid

  • 圖譜

×
