107-12-0

丙腈(107-12-0)紅外圖譜(IR1)

產(chǎn)品名稱:丙腈

CAS:107-12-0

分子式:C3H5N

分子量: 55.08

InChI:InChI=1S/C3H5N/c1-2-3-4/h2H2,1H3

InChIKey: FVSKHRXBFJPNKK-UHFFFAOYSA-N

Smiles:C(#N)CC

  • 圖譜
    Mass

    MS-NW-0774
propionitrile
C3H5N               (Mass of molecular ion:     55)


       Source Temperature: 220 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV


          15.0       4.2
      25.0       1.8
      26.0      16.3
      27.0      14.7
      28.0     100.0
      29.0       2.6
      37.0       1.3
      38.0       2.1
      39.0       2.0
      40.0       4.2
      50.0       1.8
      51.0      10.2
      52.0      14.1
      53.0       8.8
      54.0      84.6
      55.0      15.6
      56.0       1.2

parameter in CDCl3

90 MHz in CDCl3

  • 圖譜

    1H NMR 300 MHz
    C3 H5 N 10 vol% in CCl4
    propionitrile
    ChemicalStructure
        Parameter     ppm  Hz

      D(A)         1.289
      D(B)         2.311
       J(A,B)          7.605

     EBERSOLE,S. ET AL. J.PHYS.CHEM. 68, 3430 (1964)


         Hz     ppm     Int.


        704.84   2.349    146
    697.22   2.324    463
    689.62   2.299    486
    682.04   2.273    170
    394.21   1.314    509
    386.62   1.289   1000
    379.01   1.263    456

  • 圖譜

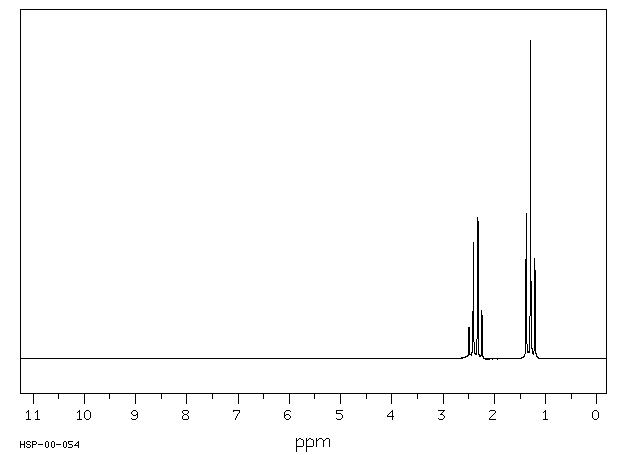

    1H NMR 89.56 MHz
    C3 H5 N 10.1 mol% in CDCl3
    propionitrile
    ChemicalStructure
        Assign.     Shift(ppm)

      A             1.30
      B             2.36


         Hz     ppm     Int.


        223.63   2.497     99
    222.75   2.488     96
    215.44   2.406    364
    208.63   2.330    252
    207.81   2.321    443
    200.88   2.243    151
    200.06   2.234    137
    123.31   1.377    456
    116.06   1.296   1000
    115.50   1.290    603
    112.75   1.259     26
    108.19   1.209    316
    107.56   1.201    168

in CDCl3

  • 圖譜

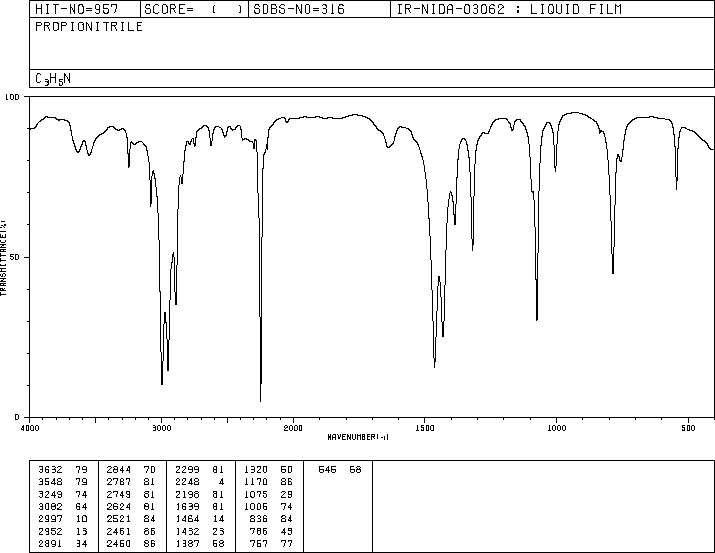

liquid film

  • 圖譜

UV PHOTOLYSIS IN H2O2 AND H2O, 40C

  • 圖譜

×
