Mass

MS-NW-2185
allylamine
C3H7N               (Mass of molecular ion:     57)

   Source Temperature: 280 °C
   Sample Temperature: 170 °C
   Reservoir, 75 eV

      15.0       1.5
      18.0       2.2
      26.0       5.4
      26.5       1.3
      27.0       8.1
      28.0      51.6
      29.0      13.4
      30.0      82.4
      31.0       1.5
      37.0       1.6
      38.0       3.0
      39.0      16.5
      40.0       2.1
      41.0       8.0
      42.0       2.7
      44.0       2.5
      51.0       1.6
      52.0       3.3
      53.0       1.0
      54.0       6.4
      55.0       1.9
      56.0     100.0
      57.0      35.9
      58.0       1.5

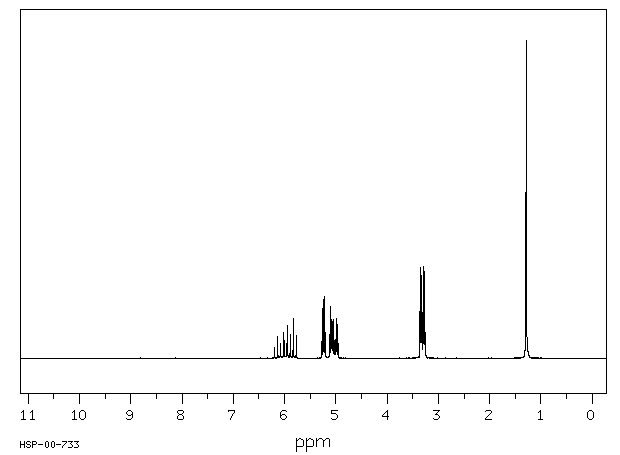

Assign. Shift(ppm) A 5.954 B 5.159 C 5.051 D 3.311 E 1.29 J(A,B)=17.3HZ J(A,C)=10.0HZ J(A,D)=5.3HZ J(B,C)=1.7HZ J(B,D)=-1.7HZ

     Hz     ppm     Int.

    554.69   6.194     36
    549.31   6.134     68
    544.56   6.081     46
    544.06   6.075     42
    539.31   6.022     81
    537.44   6.001     56
    534.06   5.964     46
    532.13   5.942    102
    527.38   5.889     74
    526.88   5.883     66
    522.06   5.830    125
    516.88   5.772     74
    471.94   5.270     58
    470.25   5.251    156
    468.44   5.231    195
    466.75   5.212     85
    458.69   5.122     76
    457.25   5.106    163
    455.75   5.089    104
    455.38   5.085    121
    454.75   5.078     59
    453.94   5.069     61
    453.00   5.059    117
    451.19   5.038    122
    449.50   5.019     56
    448.69   5.010     58
    447.19   4.994    125
    445.38   4.973    106
    443.88   4.957     49
    300.69   3.358    187
    299.19   3.341    287
    297.56   3.323    195
    295.44   3.299    184
    293.88   3.282    288
    292.25   3.264    192
    115.25   1.287   1000
