101-75-7

4-苯偶氮二苯胺(101-75-7)核磁圖(13CNMR)

產(chǎn)品名稱:4-苯偶氮二苯胺

CAS:101-75-7

分子式:C18H15N3

分子量: 273.33

InChI:InChI=1S/C18H15N3/c1-3-7-15(8-4-1)19-16-11-13-18(14-12-16)21-20-17-9-5-2-6-10-17/h1-14,19H

InChIKey: VXLFYNFOITWQPM-UHFFFAOYSA-N

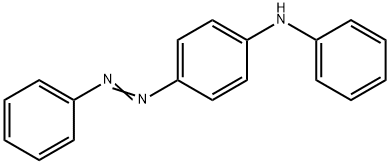

Smiles:C1(NC2=CC=CC=C2)=CC=C(N=NC2=CC=CC=C2)C=C1

  • 圖譜
    Mass

    MS-IW-1440
4-(phenylazo)diphenylamine
C18H15N3            (Mass of molecular ion:    273)


       Source Temperature: 150 °C
   Sample Temperature: 130 °C
   Direct, 75 eV


          39.0       3.3
      50.0       2.0
      51.0       9.0
      52.0       1.4
      63.0       2.8
      64.0       2.2
      65.0       4.6
      76.0       1.2
      77.0      24.7
      78.0       2.5
      89.0       1.0
      90.0       1.6
      91.0       1.1
     115.0       3.7
     128.0       1.6
     136.5       1.3
     139.0       3.2
     140.0       2.6
     141.0       2.2
     166.0       7.3
     167.0      54.6
     168.0     100.0
     169.0      13.2
     184.0       1.1
     196.0       9.3
     197.0       1.3
     273.0      83.1
     274.0      17.6
     275.0       1.8

in CDCl3

  • 圖譜

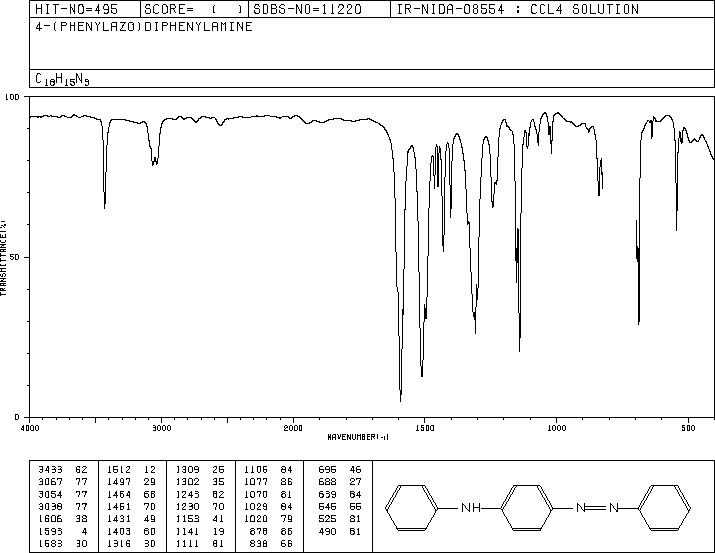

CCl4 solution

  • 圖譜

KBr disc

  • 圖譜

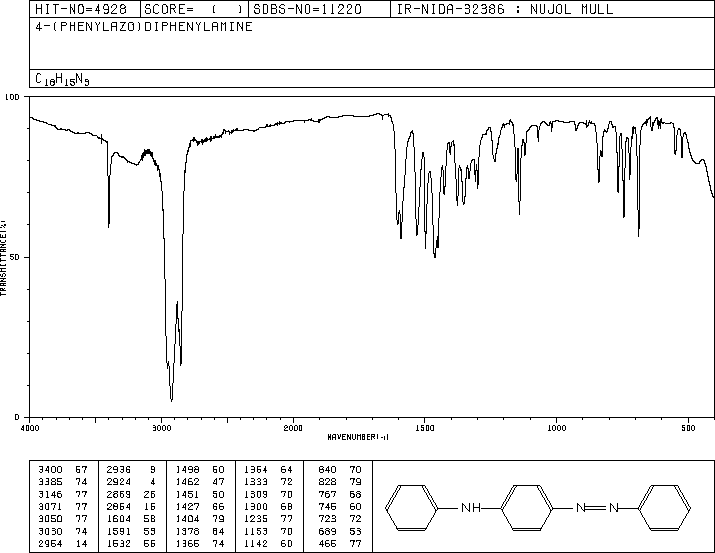

nujol mull

  • 圖譜

×
