4,4'-BIS(DIMETHYLAMINO)BENZIL(17078-27-2) IR2
Product Name4,4'-BIS(DIMETHYLAMINO)BENZIL
CAS17078-27-2
Molecular FormulaC18H20N2O2
Molecular Weight296.36
InChIInChI=1S/C18H20N2O2/c1-19(2)15-9-5-13(6-10-15)17(21)18(22)14-7-11-16(12-8-14)20(3)4/h5-12H,1-4H3
InChIKey AVFUVYIDYFXFSX-UHFFFAOYSA-N
SmilesC(C1=CC=C(N(C)C)C=C1)(=O)C(C1=CC=C(N(C)C)C=C1)=O
-
MassMS-NW-7028 4,4'-bis(dimethylamino)benzil C18H20N2O2 (Mass of molecular ion: 296)
Source Temperature: 220 °C Sample Temperature: 180 °C Direct, 75 eV
18.0 1.3 42.0 7.4 51.0 1.1 77.0 4.6 78.0 2.2 79.0 3.2 91.0 2.1 92.0 1.2 104.0 2.7 105.0 4.6 118.0 1.2 119.0 2.4 120.0 2.9 148.0 100.0 149.0 10.9 296.0 8.7 297.0 1.9
90 MHz in CDCl3
-
1H NMR 89.56 MHz C18 H20 N2 O2 0.034 g : 0.5 ml CDCl3 4,4'-bis(dimethylamino)benzil

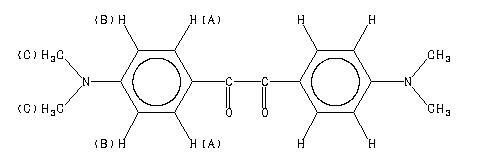

Assign. Shift(ppm)
A 7.836 B 6.624 C 3.046
Hz ppm Int.
706.69 7.891 119 704.63 7.868 38 699.63 7.812 44 697.50 7.789 141 597.56 6.673 120 595.44 6.649 37 590.50 6.594 36 588.38 6.570 101 272.88 3.047 1000
in CDCl3
KBr disc
nujol mull
